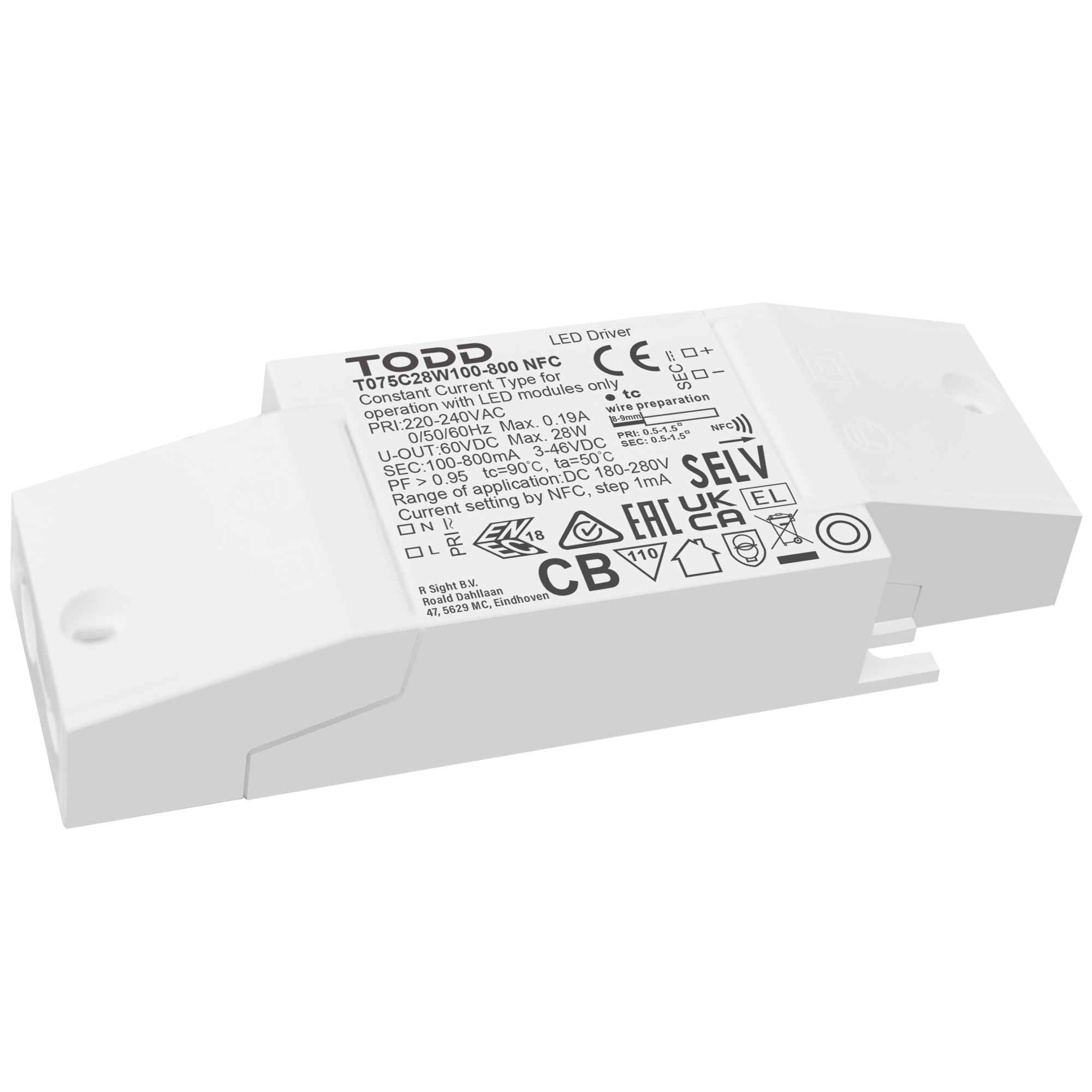

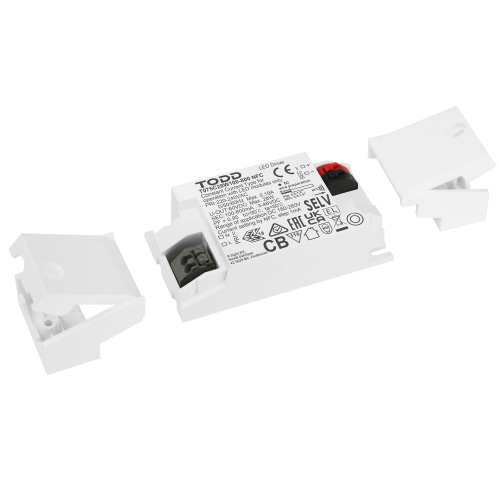

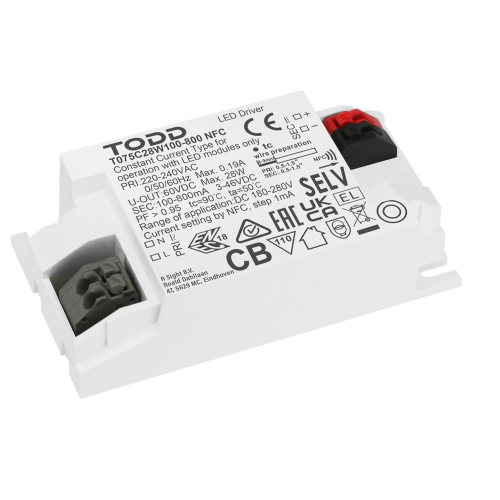

Mini LED Driver 28w 100-800mA NFC

Get Latest Price

The output voltage	3-46Vdc
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	28
Contact Now

Model No.: T075C28W100-800 NFC

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 75x40x21mm

Description

Product Description

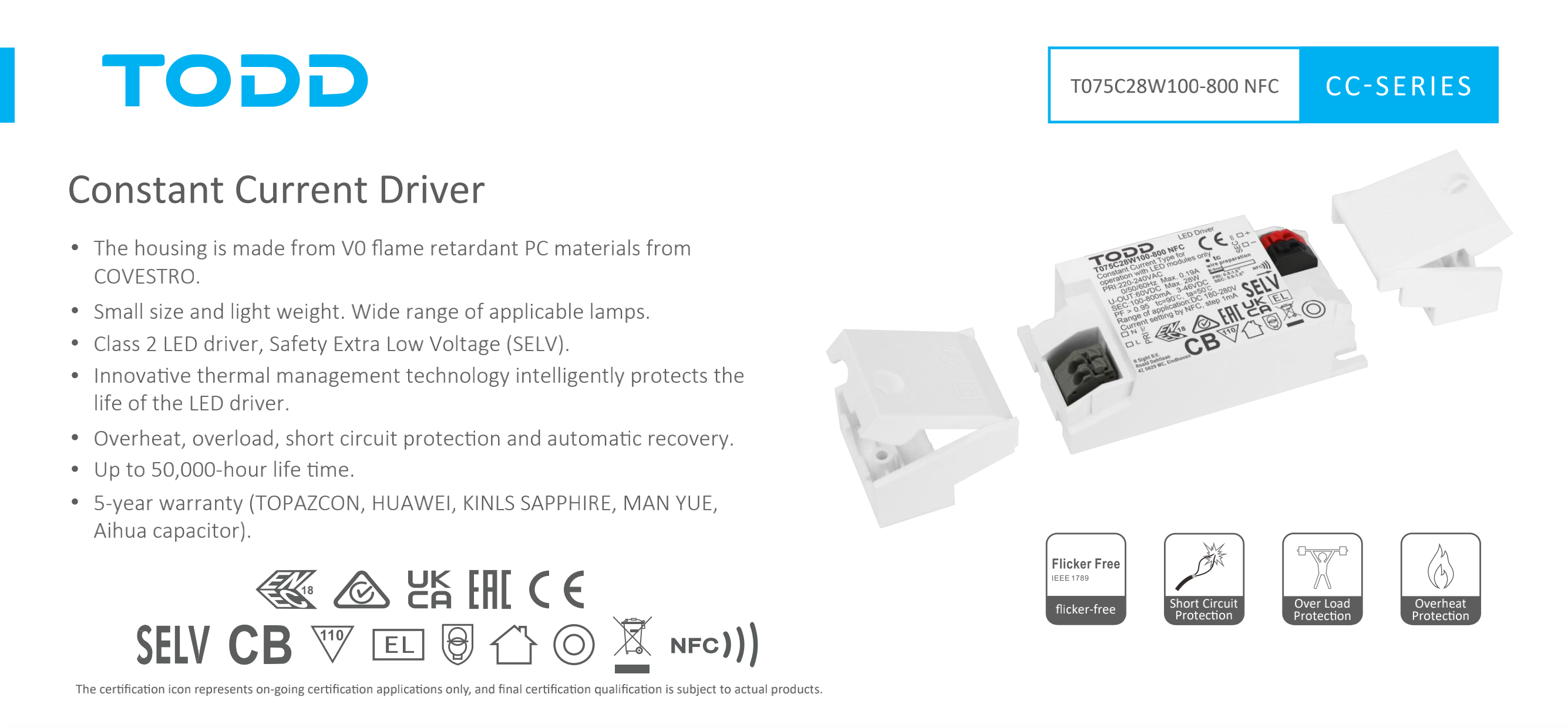

This is a Compact LED Driver designed for installations where space, flexibility, and programming efficiency matter. Output current can be set freely from 100-800mA in precise 1mA increments through NFC, allowing quick configuration via software or smartphone without powering the unit. This led mini driver supports LED modules from 3-46V DC and maintains efficiency up to ≥88% at full load, with a power factor ≥0.95. The driver uses a V0 flame retardant PC housing from COVESTRO and integrates thermal management with automatic protection against overheat, overload, and short circuit. Measuring only 75×40×21mm and built with a SELV Class II structure, it fits easily into tight luminaire cavities and supports both built in and independent installations. With a rated lifetime of up to 100,000 hours at Tc 80°C and a 5 year warranty, the T075C28W100 800 NFC offers stable performance, low no load power consumption (≤0.5W), and consistent output for modern lighting designs. This compact LED driver combines space saving structure with NFC adjustability, making it an efficient choice for fixture manufacturers who need a reliable led mini driver that speeds up production and simplifies on site configuration.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

constant current led driver

Output Current adjustable via NFC Switch

100-800mA

3-46V

up to 87-88% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 0/50/60Hz

Power Factor ≥0.95

Current ripple (< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Built-in/Independent

75x40x21mm

Overload Protection

Short Circuit Protection

SELV
