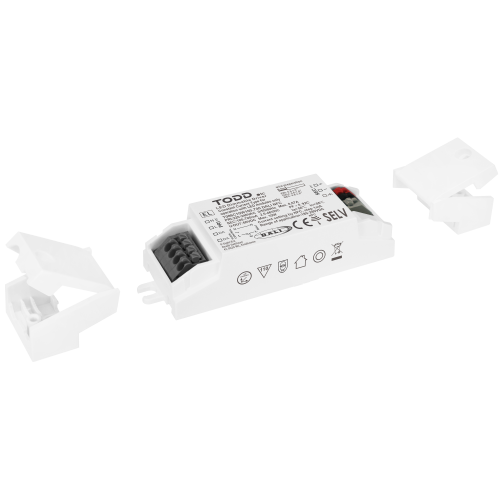

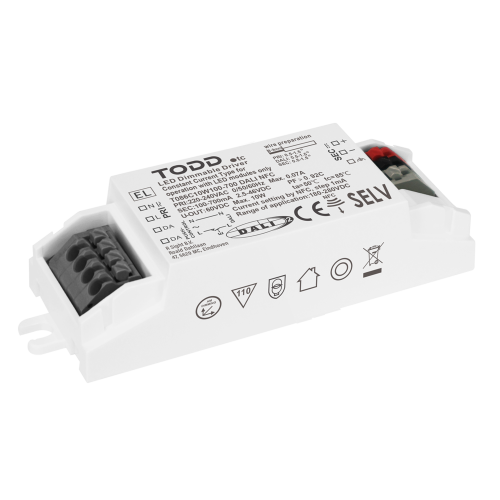

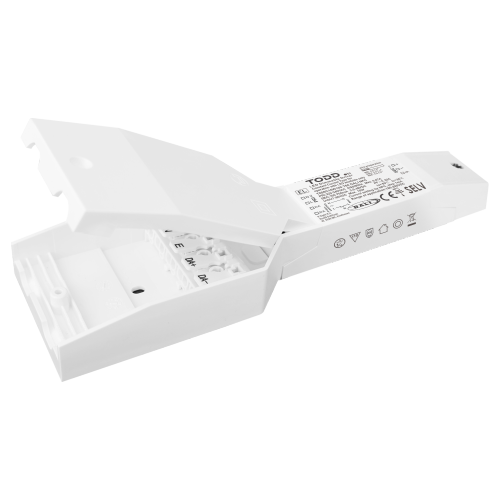

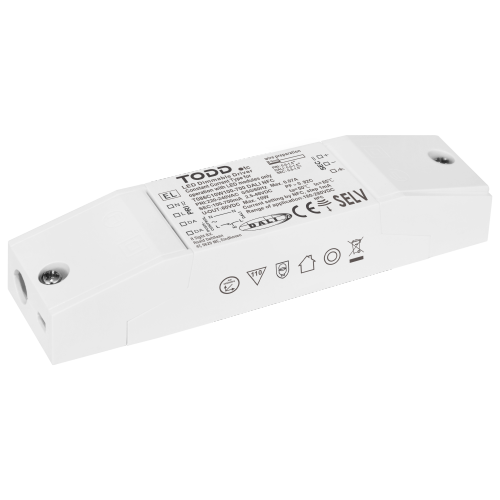

10W NFC Programmable DALI LED Drivers

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

The output voltage	2.5-46V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	10

Get Latest Price



PRODUCT ATTRIBUTES



Overview

Product Attributes

Model No.: T086C10W100-700 DALI NFC

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 86x30x21mm

Overview

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Download:

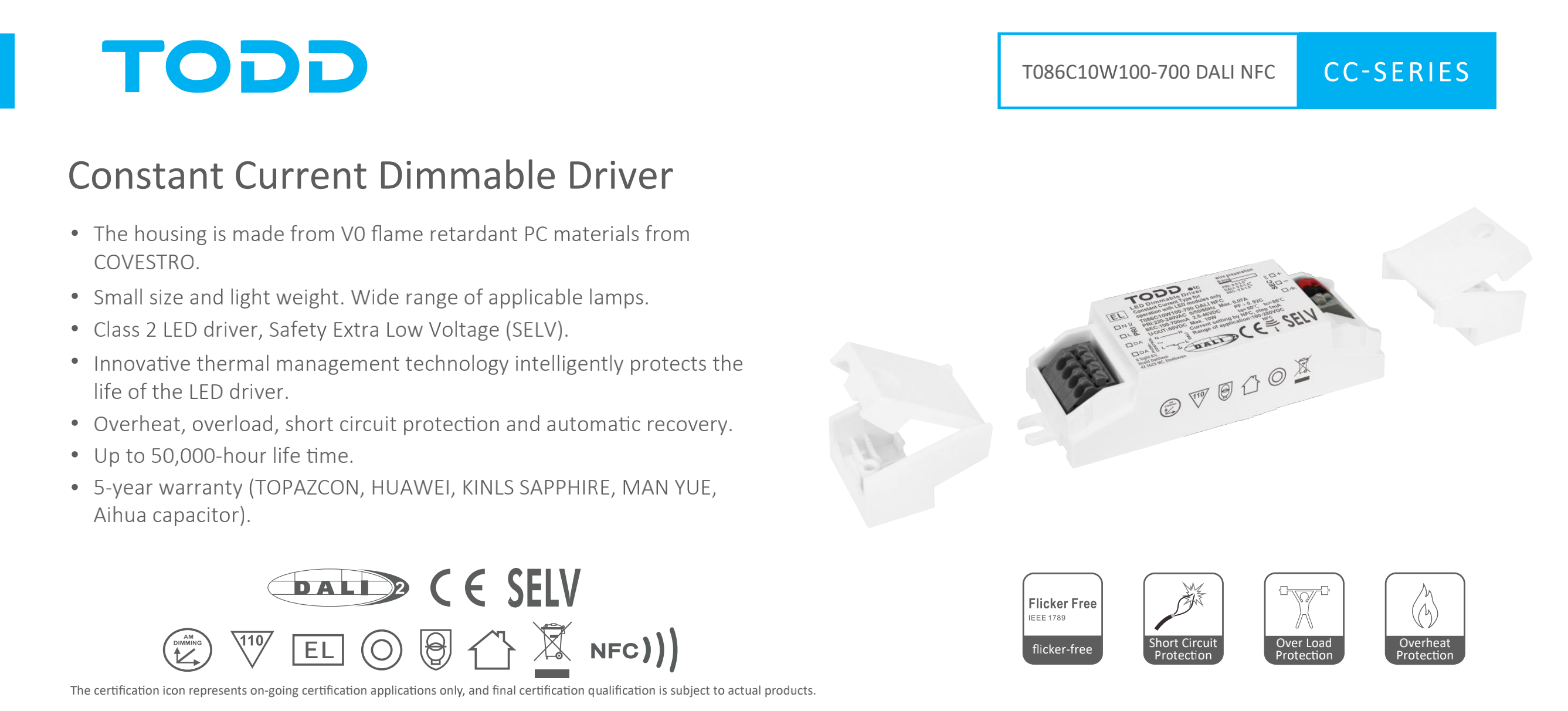

Product Description

The housing is made from V0 flame retardant PC materials from COVESTRO.

Small size and light weight. Wide range of applicable lamps.

Class 2 LED driver, Safety Extra Low Voltage (SELV).

Innovative thermal management technology intelligently protects the life of the LED driver.

Overheat, overload, short circuit protection and automatic recovery.

Up to 50,000-hour life time.

5-year warranty (AiSHi capacitor).

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

constant current led driver

Output Current adjustable via NFC Switch

dimmable ：DALI

100-700mA

2.5-46V

up to 82-83% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 0/50/60Hz

Power Factor ≥0.92

Current ripple (< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Built-in/Independent

86x30x21mm

Overload Protection

Short Circuit Protection

SELV

Funtion of the earth terminal:

The earth connection is conducted as protection earth (PE). The LED Driver can be earthed via earth terminal or metal housing (if device has metal housing). If the LED Driver will be earthed, protection earth (PE) has to be used. There is no earth connection required for the functionality of the LED Driver. Earth connection is recommended to improve following behaviour.

- Electromagnetic interferences (EMI)

- LED glowing at standby

In general, it is recommended to earth the LED Driver if the LED module is mounted on earthed luminaire parts respectively heat sinks and thereby representing a high capacity against earth. Avoiding residual LED glow on standby Residual LED glow on standby may occur as a result of capacitive leakage currents from the LED module onto earthed luminaire parts (such as the heat sink). This mainly affects high-efficiency LED systems with large surface areas installed in luminaires with protection class 1.

The topology has been improved so that residual LED glow can be virtually eliminated by earthing the devices.
