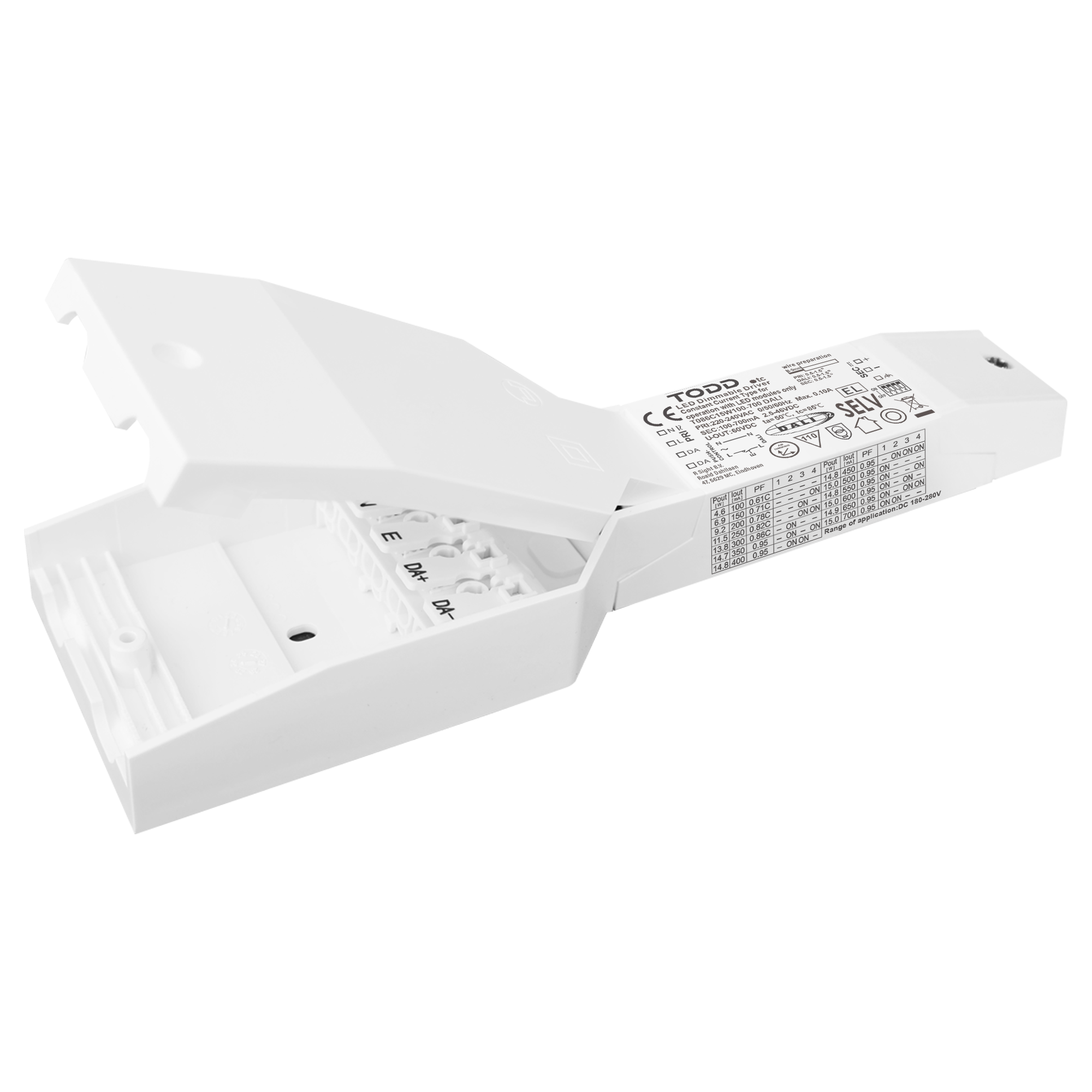

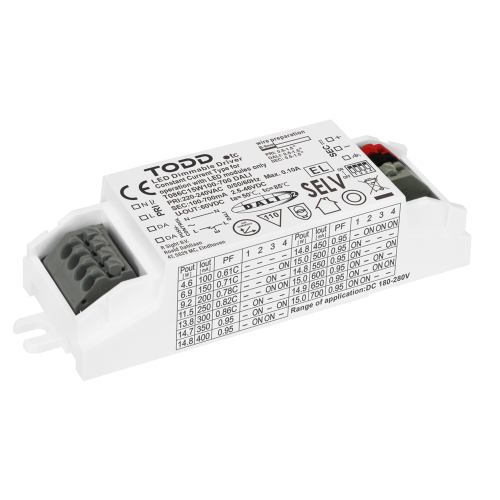

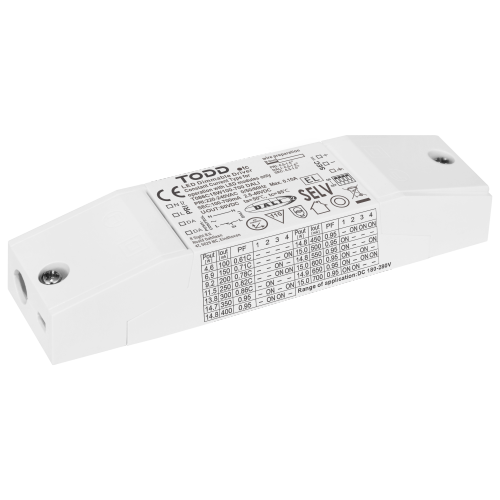

DALI Dimmable Driver 15W 100-700mA
DALI Dimmable Driver 15W 100-700mA
DALI Dimmable Driver 15W 100-700mA
DALI Dimmable Driver 15W 100-700mA

DALI Dimmable Driver 15W 100-700mA

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.: T086C15W100-700 DALI

    Brand: TODD

    Warranty Period (years): 5-Year

    Place Of Origin: China

    Output Power: 1 - 50w

    Input Voltage: 220v

    Size: 86x30x21mm

    Description
    Product Description
    Push Dim :

    1.On/ off:

    Short push (120ms-600ms) on the switch,Stepless dimming: long push (> 0.6sec) on the switch.

    2. Power-on memory function

    When the LED driver is powered on, it will restore the memory before the LED driver is poweredoff.

    (brightness remembers the brightness after the last dimming is stable, and the bright ness during dimming is not memorized)

    3.Light on/off

    If the light is on, the light will be off after a short press. If the light is off, the light will be on after a short press. The time range of short press is 120-600mS.
    4.PUSH Dimming

    Press and hold the push switch for a long time, the light will enter the dimming state, if the previous time is dimming, it will automatically turn to dimming the next time.After releasing the reset button, the dimming stops and the current illuminance is maintained. The dimming range is 1%-100%. The default is to dim when the power is first long-press. If the brightness of the power-onis the maximum brightness, the first long-press is to dim. (Long press O.6-3S to start dimming.)

    5.Forced synchronization

    Long press for 10 seconds to turn on all the lights and turn on the same brightness (50%), and continue to quickly short press will not change. After a short period of time without short press operation, the module exits the synchronization mode, and the short press restores the switch function.

    6.PUSH Dimming rate

    Long press the push switch 10S to switch the dimming rate to 3S, Long press the push switch 20S to switch the dimming rate to6S.


    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

    Constant Current LED Driver

    Output Current adjustable via Dip Switch

    dimmable ：DALI

    100-700mA

    2.5-46V

    up to 84-85% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 0/50/60Hz

    Power Factor ≥0.95

    Current ripple (< 120 Hz) ±3%

    IP Grade IP20

    Insulation Class II

    Built-in/Independent

    86x30x21mm

    		 Overload Protection

    Short Circuit Protection

    SELV

    led driver T086C15W100-700 DALI
