Dimming Driver 36W150-900 DALI NFC

Get Latest Price

The output voltage	2.5-50V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	36
Contact Now

Model No.: T088C36W150-900 DALI NFC

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 88x45x25mm

Description

Product Description

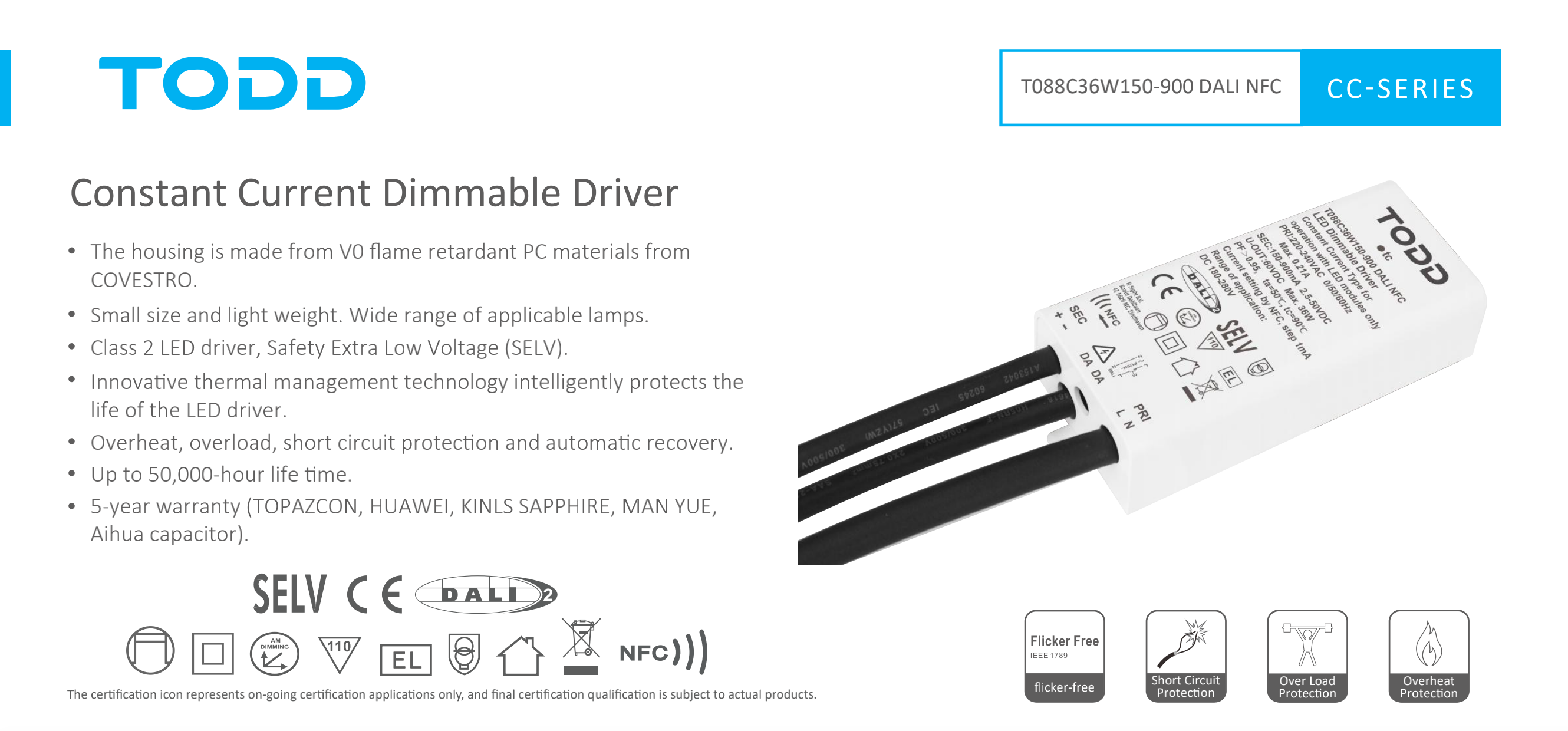

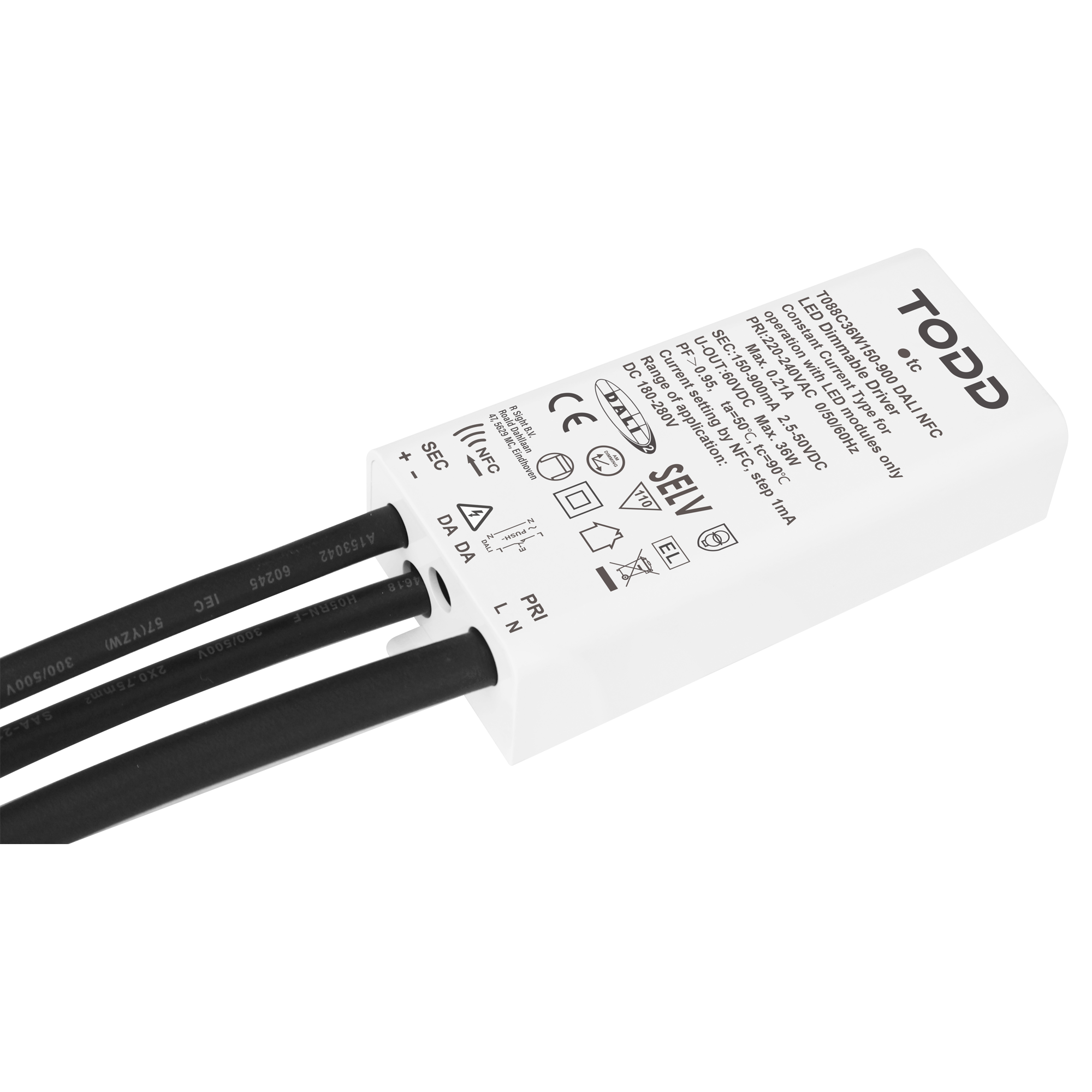

The T088C36W150-900 DALI NFC is a constant current dimmable led driver designed for lighting manufacturers who need precise dimming control and fast configuration in production. Using DALI 2 amplitude dimming, it supports 1%-100% dimming with selectable logarithmic or linear dimming curves, and also offers PUSH dimming with power-on memory and stepless brightness adjustment. As a dali dimmable driver, it delivers stable output from 150 to 900mA, adjustable in 1mA increments via NFC using software, handheld devices, desktop programmer, or smartphone APP.

Built with V0 flame retardant PC housing from COVESTRO, the driver integrates thermal management with protection against overheat, overload, short circuit, and no load conditions all with automatic recovery. Efficiency reaches ≥89%, PF ≥0.96, and standby power consumption stays as low as ≤0.45W under DALI dim to off mode. Rated lifetime is up to 100,000 hours at Tc 80°C, backed by a 5 year warranty.

With IP65 protection, SELV Class II design, and compact dimensions of 88×45×25mm, this dali driver fits well into indoor or covered lighting applications requiring reliable dimming and space efficient installation，such as office luminaires, architectural fixtures, and commercial lighting with centralized DALI control.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

constant current led driver

Output Current adjustable via NFC Switch

dimmable ：DALI

150-900mA

2.5-50V

up to 87-88% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 0/50/60Hz

Power Factor ≥0.95

Current ripple (< 120 Hz) ±3%

IP Grade IP65

Insulation Class II

Independent

88x45x25mm

Overload Protection

Short Circuit Protection

SELV
