Todd Electric(Guangdong) Co., Ltd
Category: Compact LED Driver
Products> Compact LED Driver> LED Driver CC 15W 100-700mA NFC

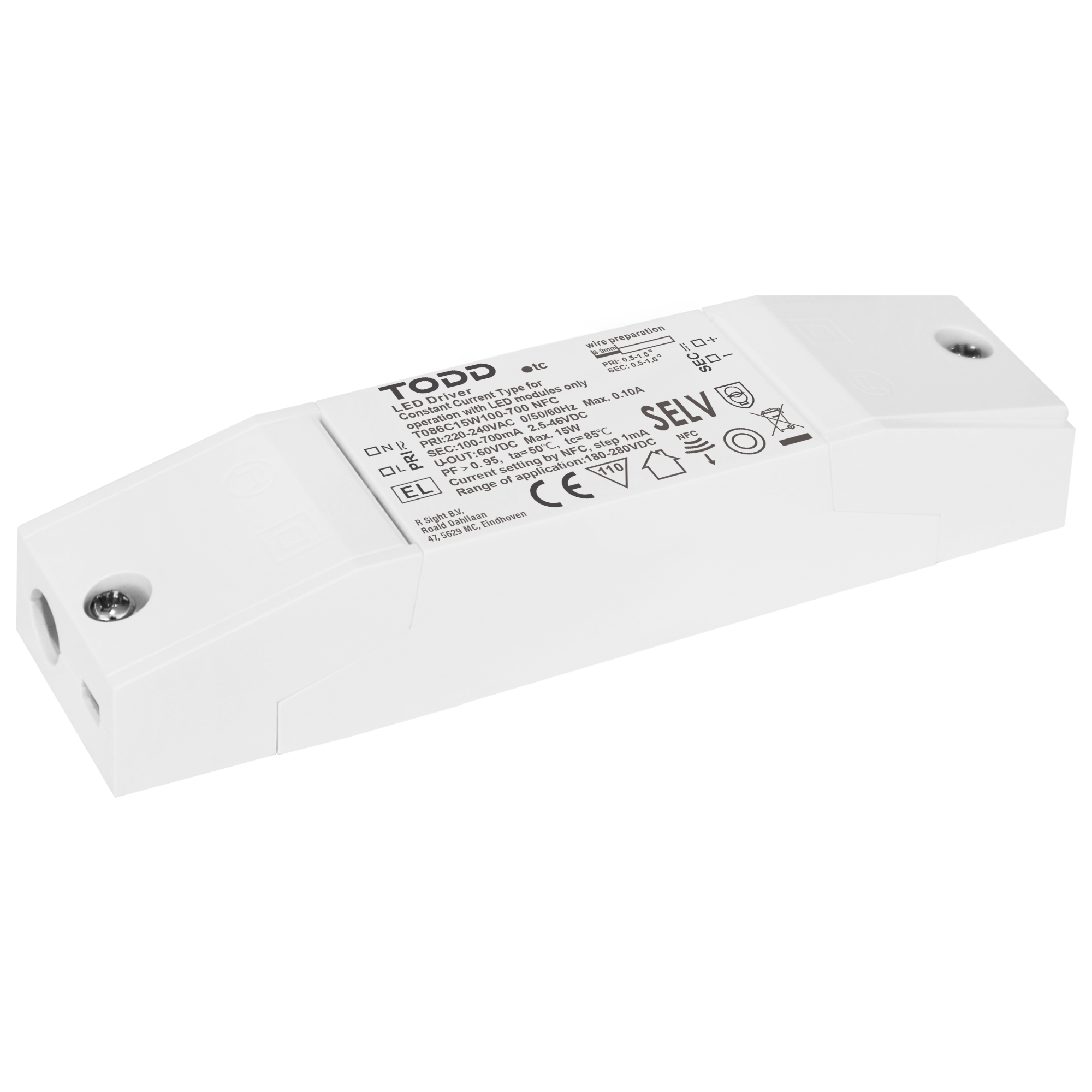

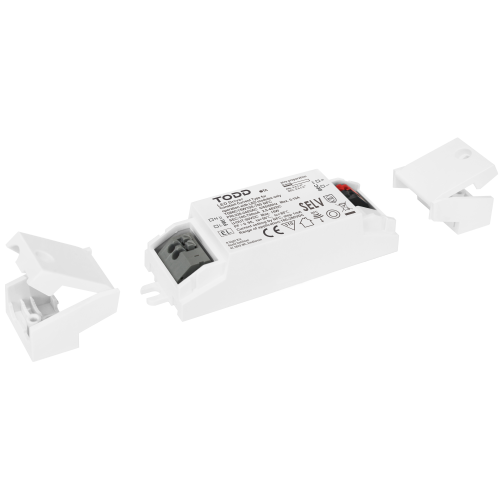

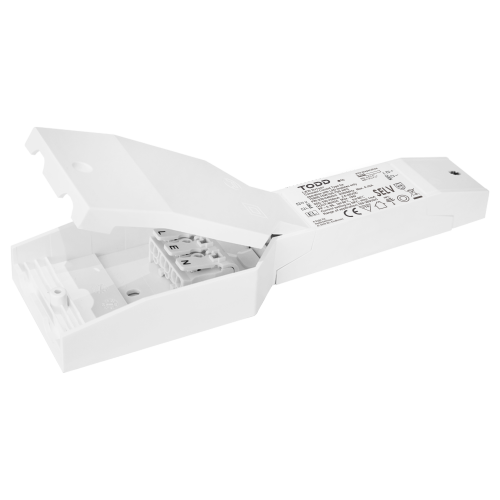

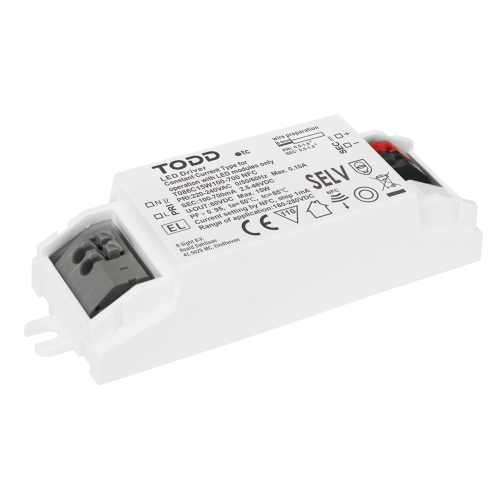

LED Driver CC 15W 100-700mA NFC
LED Driver CC 15W 100-700mA NFC
LED Driver CC 15W 100-700mA NFC
LED Driver CC 15W 100-700mA NFC

LED Driver CC 15W 100-700mA NFC

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.T086C15W100-700 NFC

    BrandTODD

    Warranty Period (years)5-Year

    Place Of OriginChina

    Output Power1 - 50w

    Input Voltage220v

    Size86x30x21mm

    Description
    Product Description

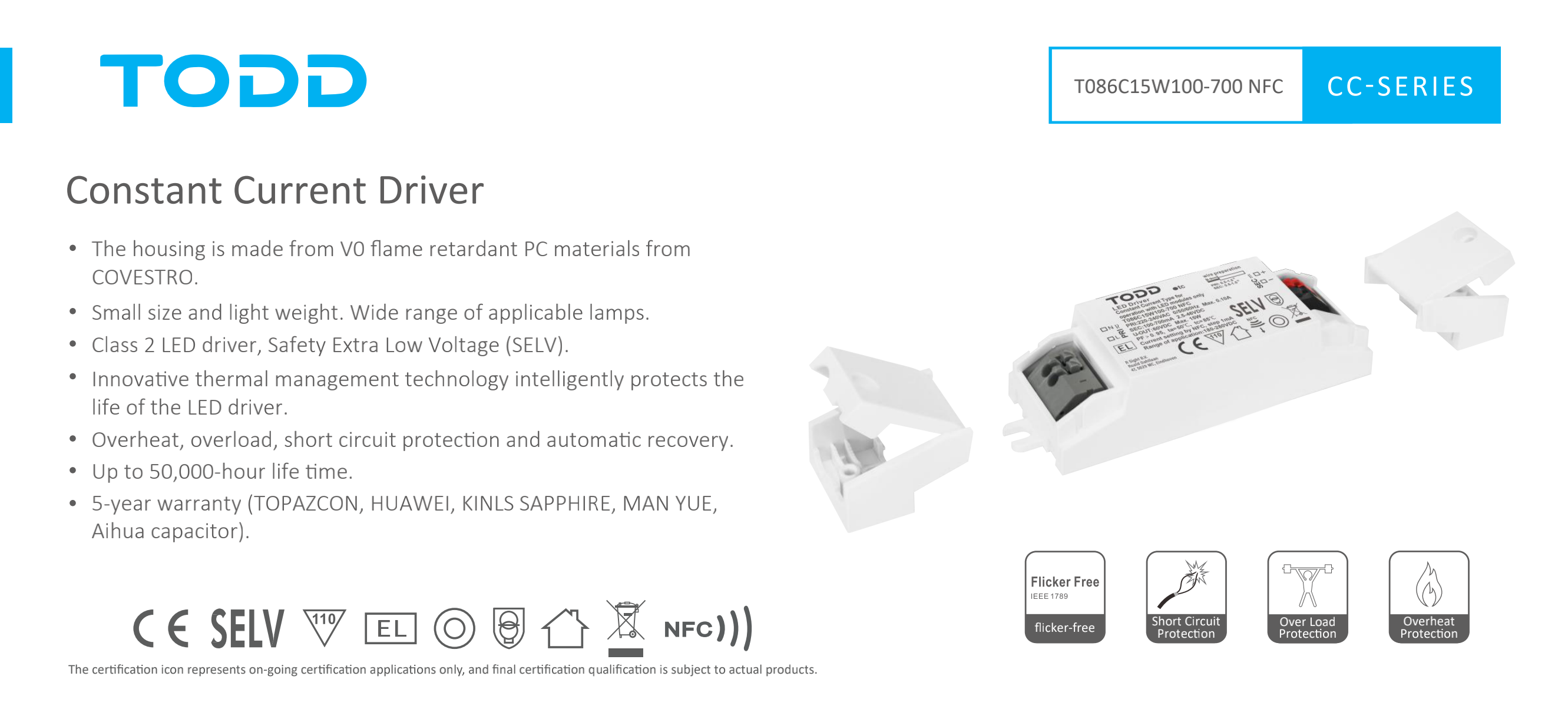

    The T086C15W100-700 NFC is a constant current led driver with NFC programming, allowing 100–700mA output setup in 1mA steps using software, handheld or desktop programmers, or smartphone APP. It features V0 flame retardant PC housing from COVESTRO, SELV Class II design, push in terminals, and built in protection including overheat, overload, short circuit, and no load auto recovery. Efficiency reaches ≥85%, PF ≥0.95, with ≤0.5W no load consumption and a compact 86×30×21mm structure. Lifetime up to 100,000 hours and supported by a 5 year warranty.


    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

    Constant Current LED driver

    Output Current adjustable via NFC Switch

    100-700mA

    2.5-46V

    up to 85-86% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 0/50/60Hz

    Power Factor ≥0.96

    Current ripple (< 120 Hz) ±3%

    IP Grade IP20

    Insulation Class II

    Built-in/Independent

    86x30x21mm

    Overload Protection

    Short Circuit Protection

    SELV


    led driver T086C15W100-700 NFC
