Products> Compact LED Driver> 10W NFC Compact Type Driver 100-700mA

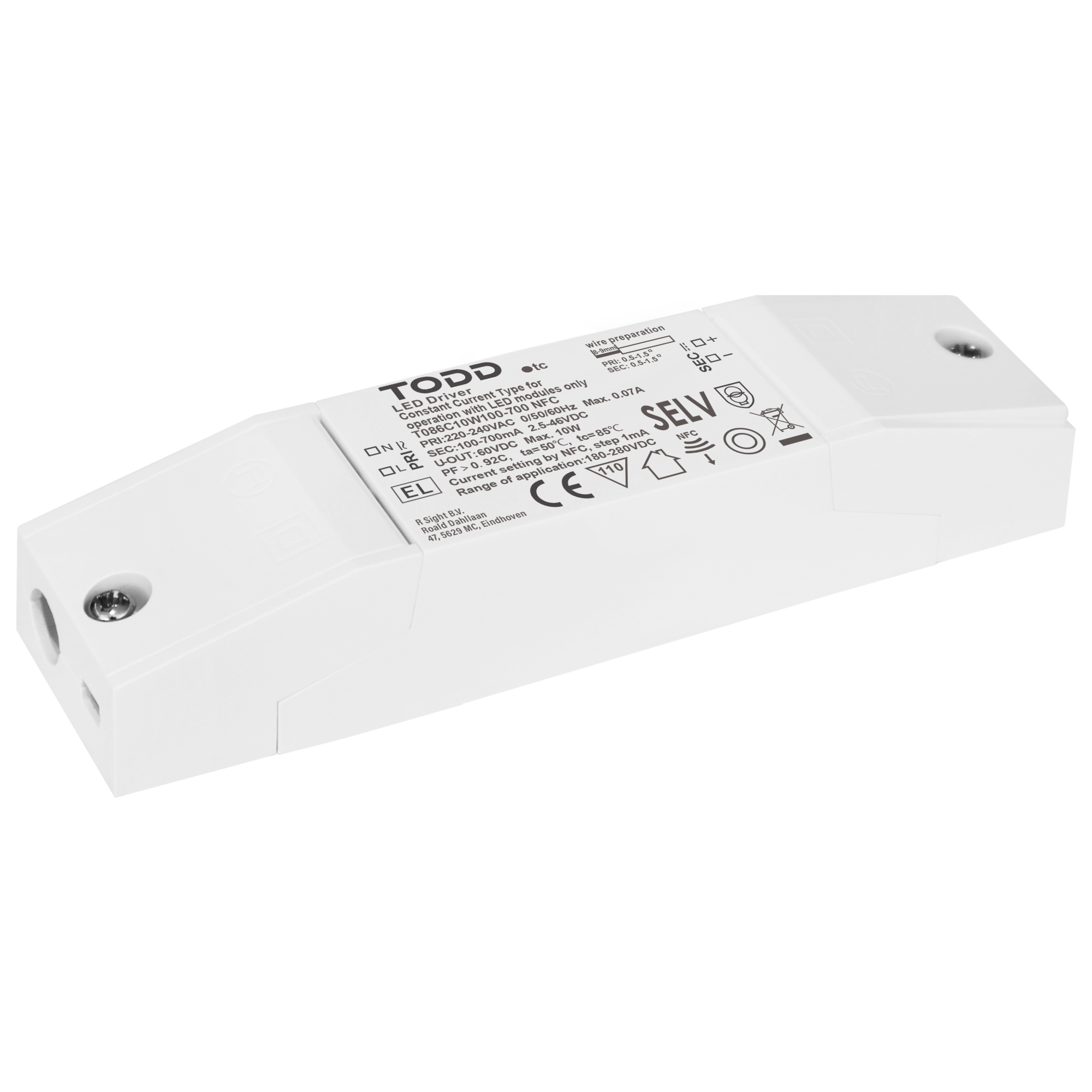

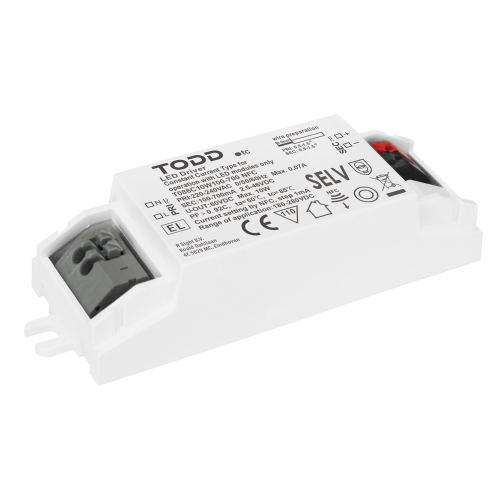

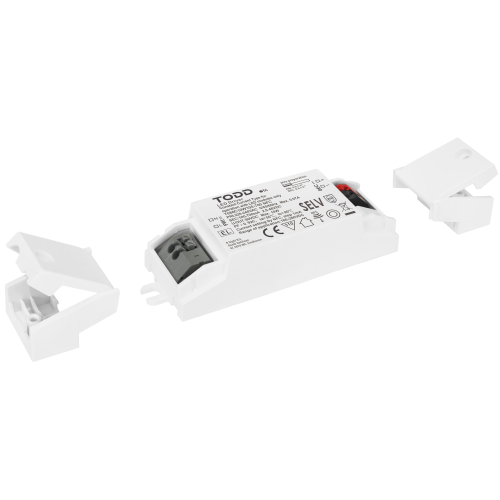

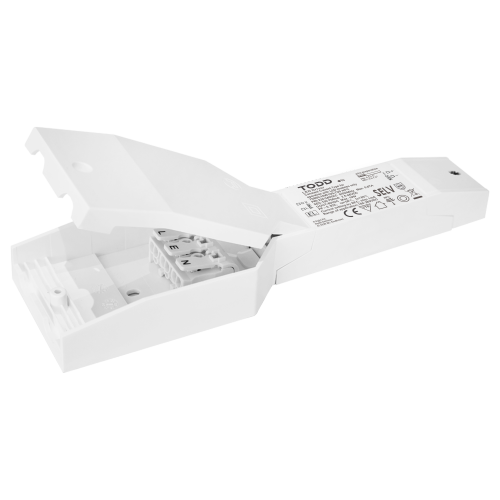

10W NFC Compact Type Driver 100-700mA
10W NFC Compact Type Driver 100-700mA
10W NFC Compact Type Driver 100-700mA
10W NFC Compact Type Driver 100-700mA

10W NFC Compact Type Driver 100-700mA

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.T086C10W100-700 NFC

    BrandTODD

    Warranty Period (years)5-Year

    Place Of OriginChina

    Output Power1 - 50w

    Input Voltage220v

    Size86x30x21mm

    Description
    Product Description
    Reliable LED driver Solutions for Professional Luminaire Manufacturers.

    Our Compact LED Driver series is engineered for OEMs who demand stable performance, flexible configuration, and fast production efficiency.

    NFC programmable output current adjustable in 1mA increments for rapid setup on the production line, no power required.
    Constant current design with wide output ranges (100–700mA ) to support multiple LED modules.
    High efficiency & power factor(up to ≥89% efficiency, PF ≥0.95) for optimized energy performance.
    Safety & lifetime assurance,V0 flame retardant PC housing, built-in protections (overheat, overload, short circuit), automatic recovery.
    Long service life rated up to 100,000 hours, backed by a 5 year warranty.
    Ultra-compact sizes (as small as 86×30×21mm) designed for slim fixtures and narrow installation spaces.

    These LED power supplies streamline production, reduce SKU inventory for OEM manufacturers, and offer reliable performance in commercial lighting, architectural fixtures, cabinet lighting, and linear profiles.

    Designed for manufacturers who need one driver platform to cover multiple power outputs stable, compact, and easy to configure.




    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

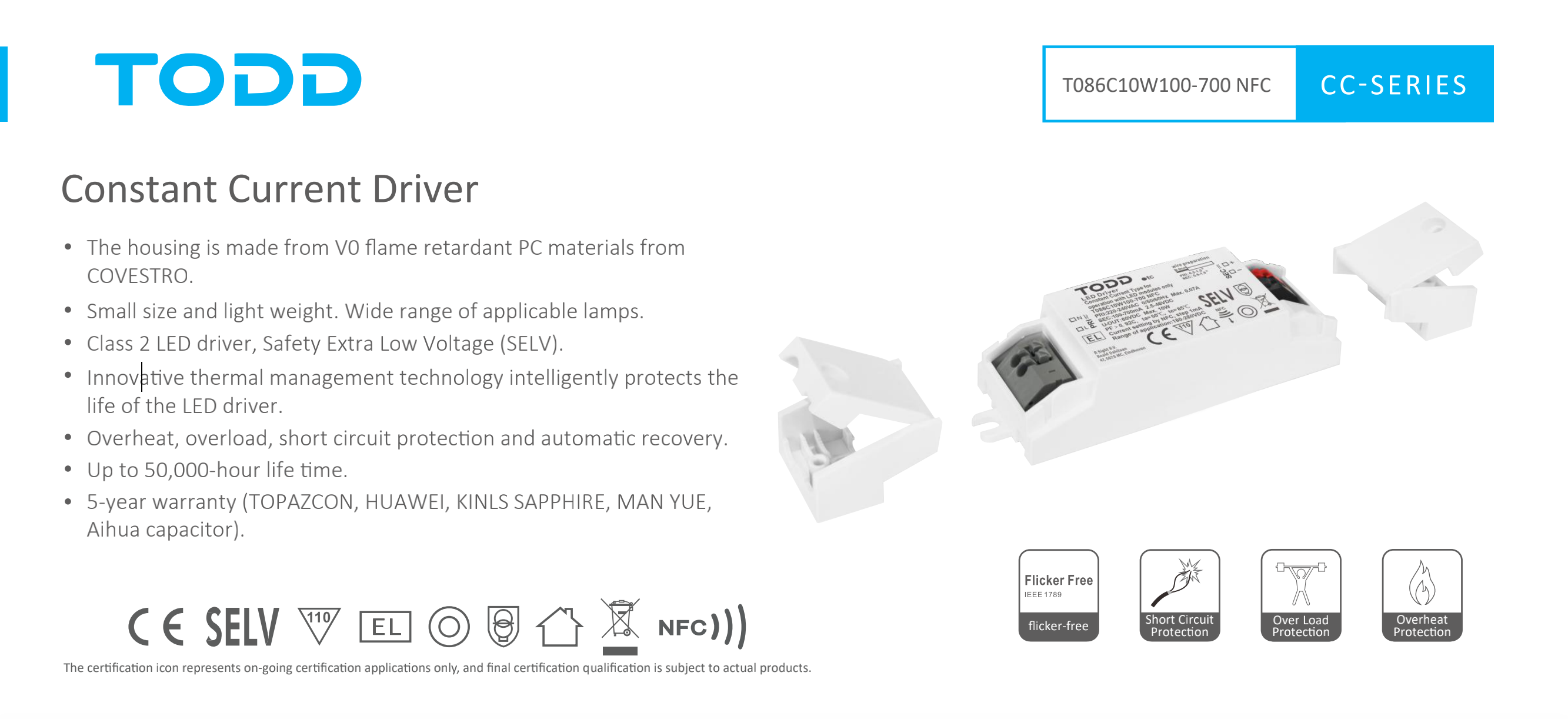

    constant current led driver

    Output Current adjustable via NFC Switch

    100-700mA

    2.5-46V

    up to 83-84% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 0/50/60Hz

    Power Factor ≥0.92

    Current ripple (< 120 Hz) ±3%

    IP Grade IP20

    Insulation Class II

    Built-in/Independent

    86x30x21mm

    Overload Protection

    Short Circuit Protection

    SELV

    led driver T086C10W100-700 NFC
    Mechanical, Operating & Storage Conditions
    Driver cross-section dimensions: 55.4-57.4 x 20.0-22.0 mm
    Wire size: 0.5 - 2.5 mm²
    Ambient temperature range: -20…+50 °C
    Storage temperature range: -20…+85 °C
    Assembly temperature range: +5...+30 °C
    Do not store in wet or humid environment!

    Unless otherwise stated in the LED driver
    datasheet (for independent installation).
    Note! Tc max temperature of the driver
    shall not be exceeded.
