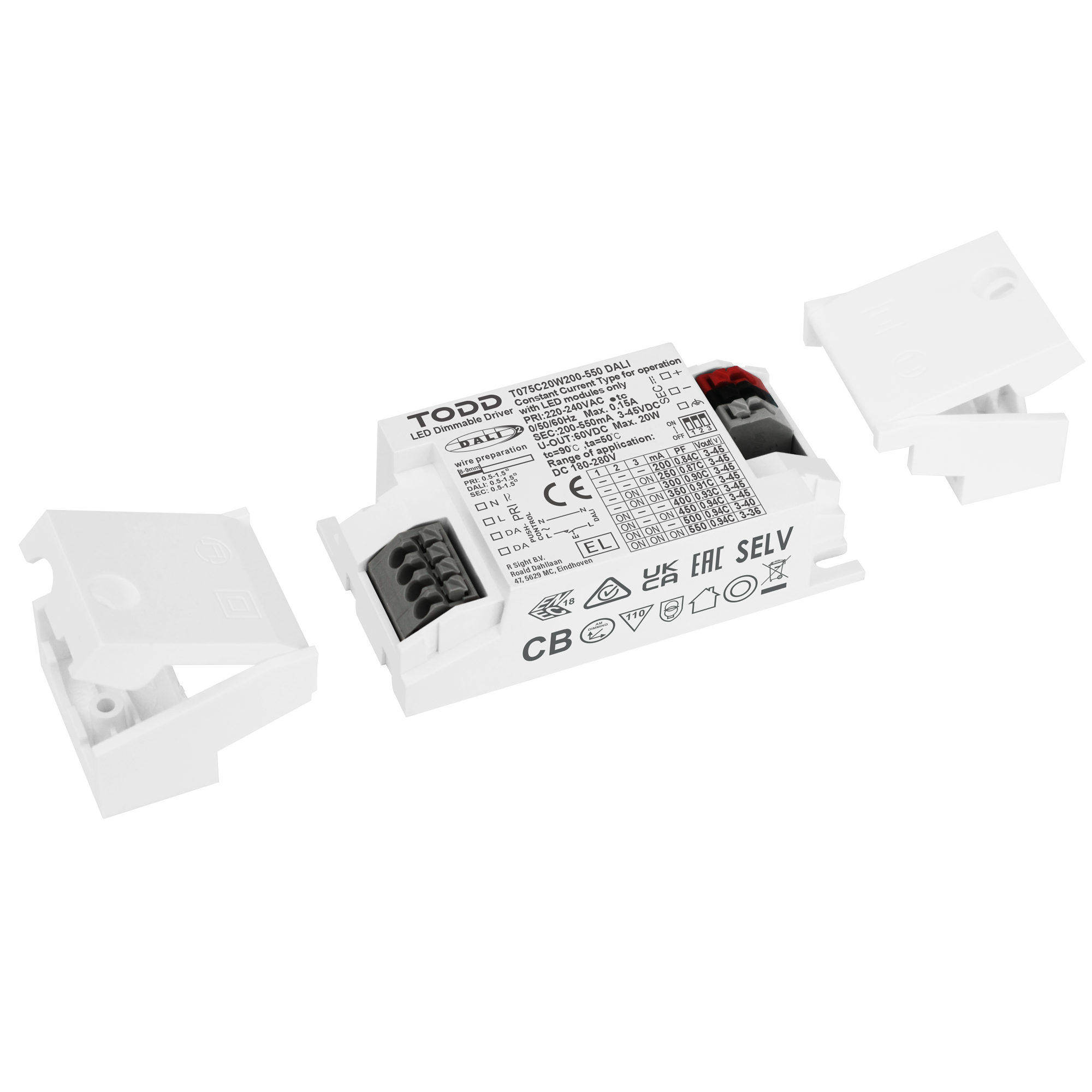

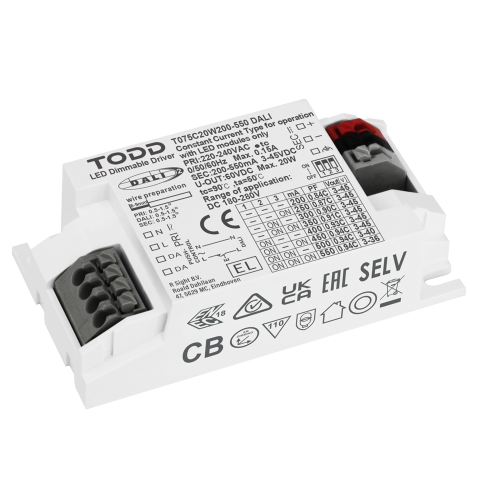

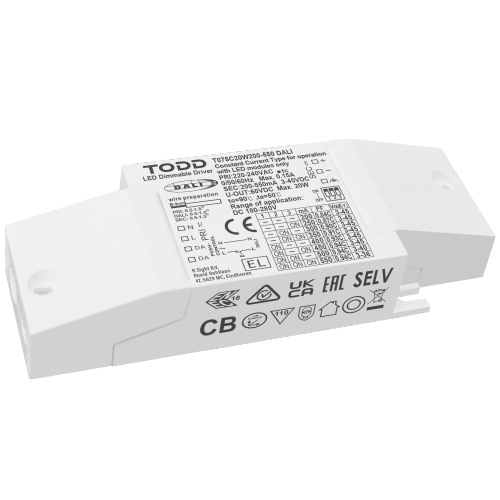

20w Small Dimmable LED Driver dali

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

The output voltage	3-45V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	20

Get Latest Price



PRODUCT ATTRIBUTES



Overview

Product Attributes

Model No.: T075C20W200-550 DALI

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 75x40x21mm

Overview

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,inner box and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,inner box and outer box
Download:

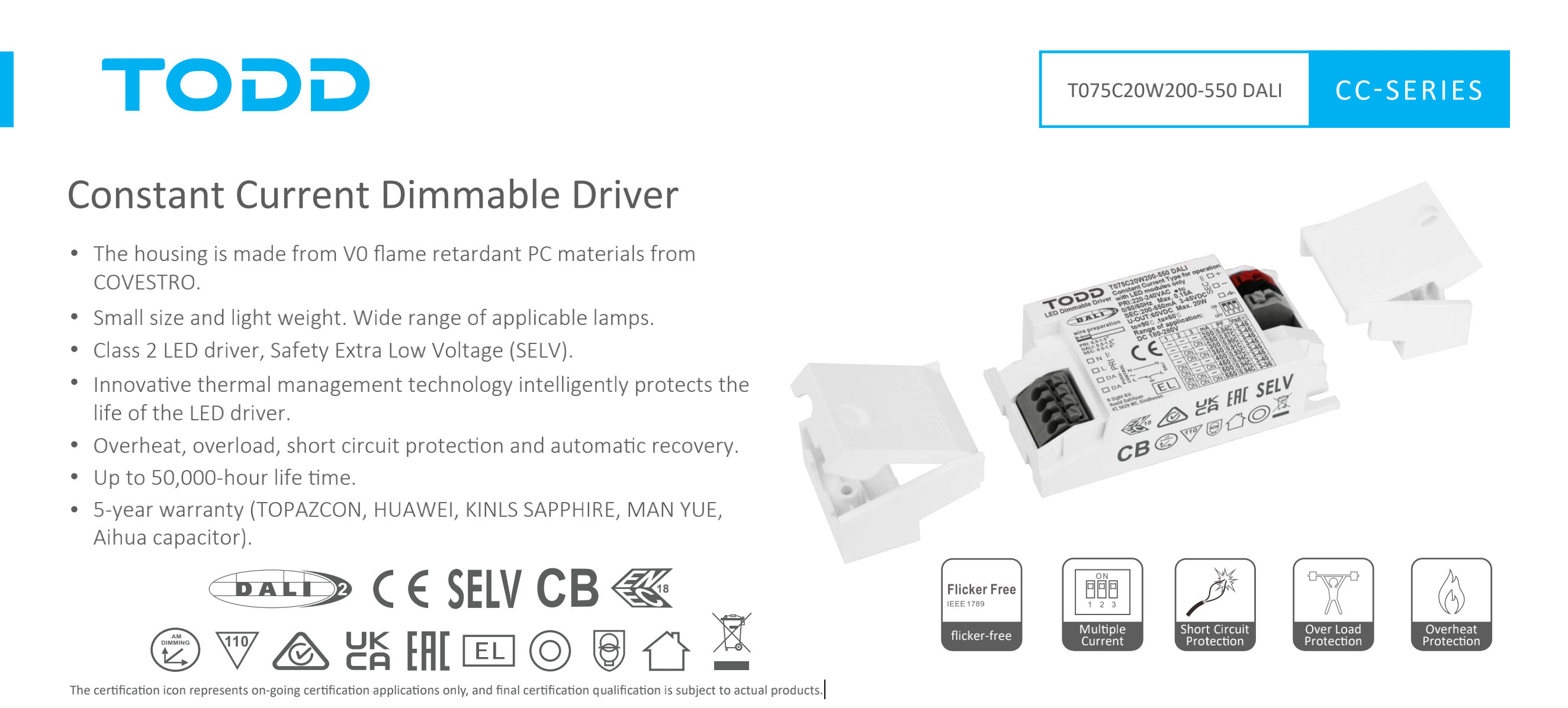

Product Description

The housing is made from V0 flame retardant PC materials from COVESTRO.

Small size and light weight. Wide range of applicable lamps.

Class 2 LED driver, Safety Extra Low Voltage (SELV).

Innovative thermal management technology intelligently protects the life of the LED driver.

Overheat, overload, short circuit protection and automatic recovery.

Up to 50,000-hour life time.

5-year warranty (AiSHi capacitor).

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

Constant Current LED Driver

Output Current adjustable via Dip Switch

dimmable：DALI

200-550mA

3-45V

up to 86-87% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 0/50/60Hz

Power Factor ≥0.94

Current ripple (< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Built-in/Independent

75x40x21mm

Overload Protection

Short Circuit Protection

SELV

Push Dim:

1.0n/off: 

Short push (120ms-600ms)on the switch,Stepless dimming:long push (>0.6sec)on the switch. 

2.Power-on memory function 

When the LED driver is powered on,it will restore the memory before the LED driver is poweredoff.(brightness remembers the brightness after the last dimming is stable,and the bright ness during dimming is not memorized)

3.Light on/off 

If the light is on,the light will be off after a short press.If the light is off,the light will be on after a short press.The time range of short press is 120-600mS. 

4.PUSH Dimming 

Press and hold the push switch for a long time,the light will enter the dimming state,if the previous time is dimming,it willautomatically turn to dimming the next time.After releasing the reset button,the dimming stops and the currentilluminanceis maintained.The dimming rangeis 1%-100%.The default is to dim when the power is first long-press.If the brightness ofthe power-onis the maximum brightness,the first long-press is to dim.(Long press 0.6-3S to start dimming.)

5.Forced synchronization 

Long press for 10 seconds to turn on all the lights and turn on the same brightness(50%),and continue to quickly short presswill not change.After a short period of time without short press operation,the module exits the synchronization mode,andthe short press restores the switch function. 

6.PUSH Dimming rate 

Long press the push switch 10S to switch the dimming rate to 3S,Long press the push switch 20S to switch the dimming rate to6S.
