Track LED Driver 42W700-1050mA

Get Latest Price

The output voltage	30-40V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	42
Contact Now

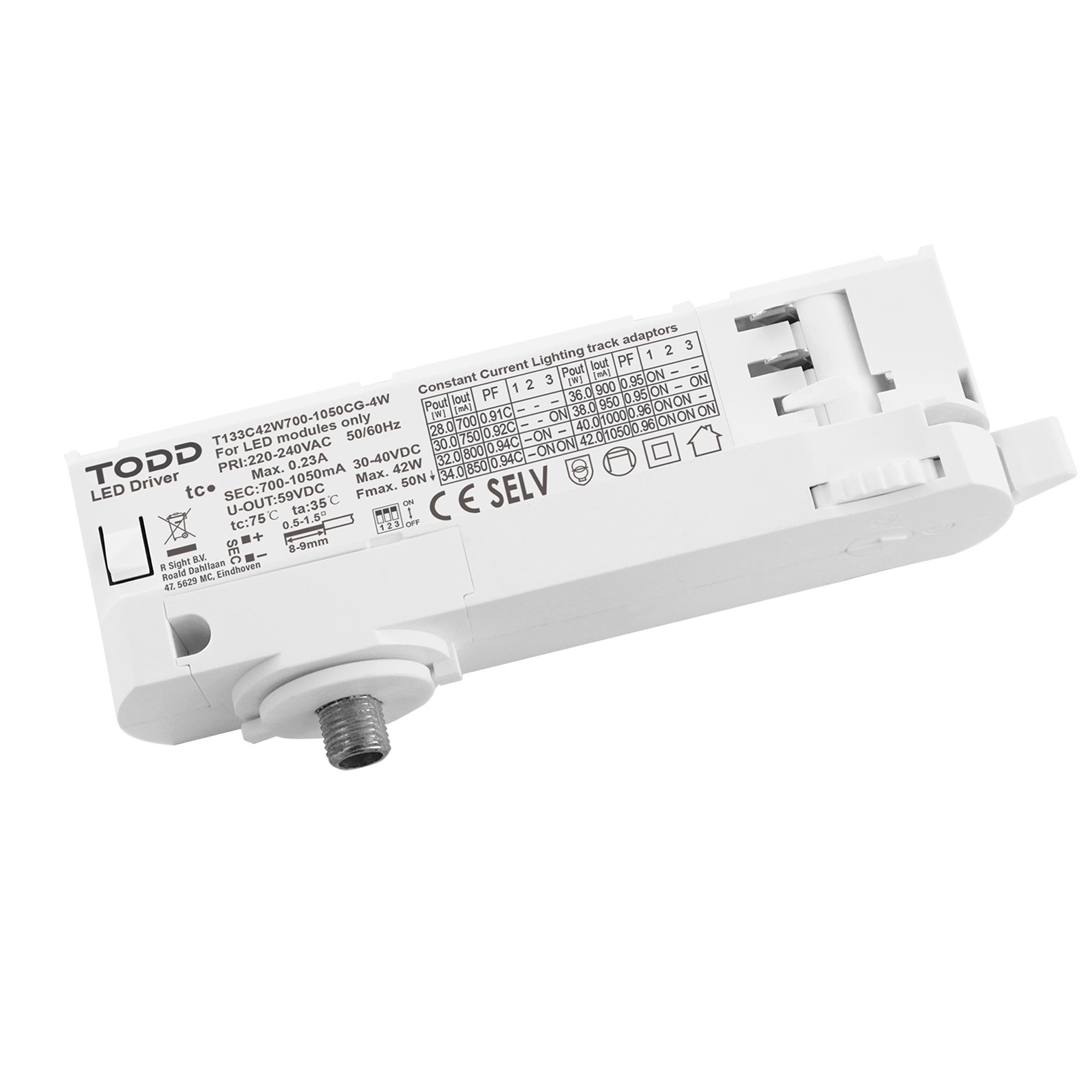

Model No.: T133C42W700-1050CG-4X

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 133.2*31.1*42.3mm

Description

Product Description

This safe low-voltage LED driver device is like installing an intelligent heart on the light strip. It is specifically designed for lighting scenarios that require safe voltage, whether it is decorative light strips in shopping mall windows or step lights in courtyards, it can stably control the current rhythm. Despite its small size, it contains a precise control system that can keep each light bead breathing at the same brightness. The shell adopts an open protection design, which is convenient for maintenance and eliminates the risk of accidental contact. It is particularly suitable for installation in easily accessible display cabinet light slots or bookshelf lighting positions. From the constant humidity exhibition hall of the art museum to the rain canopy light string of the outdoor caf é, this guardian of quiet work always ensures that the lights are both safe and attractive.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

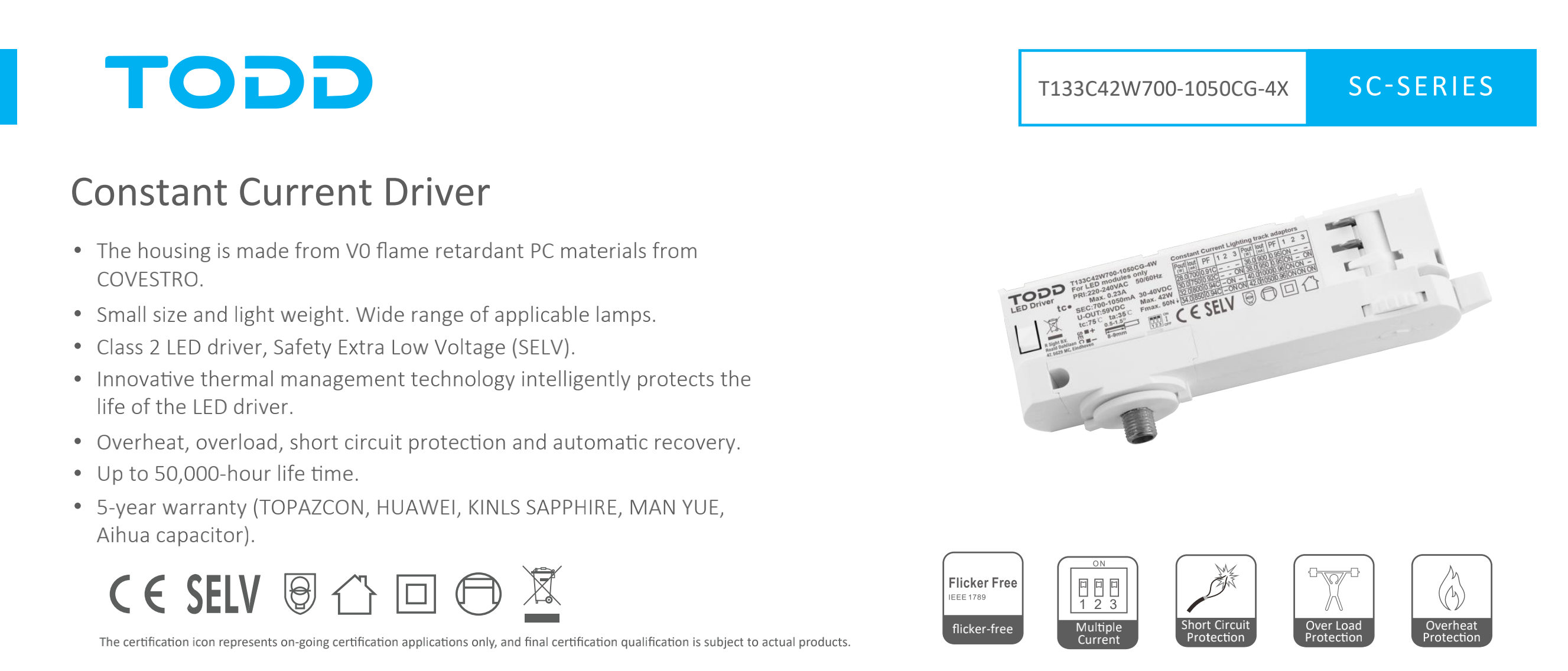

Constant Current LED Driver

Output Current adjustable via Dip Switch

700-1050mA

30-40V

up to 89-90% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.96

current ripple(< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

133.2*31.1*42.3mm

Overload Protection

Short Circuit Protection

SELV

Suitable for following tracks

Serial number	Brand	Track model	Serial number
1	Global	XTS 4&XTSF 4	3P
2	Stucchi	9000XX Series	3P
3	Eutrac	2510x	3P
4	Unipro	T32B	3P
5	Lvela	7501	3P

Remark:

1.The model name is XTS 4 and XTSF 4 tracks, and its brand is Global.

2.The model name used is the 9000XX track,and its brand is Stucchi.The“XX in the model name represents: it represents a different color.

3. The model name is 2510x tracks, and its brand is Eutrac.The“x”in the model name represents: it represents a different color(x=1white;x=2 black;x=3silverx=8 grey).

4. The model name is T32B tracksand its brand is Unipro.

5. The model name is 7501 tracks, and its brand is Ivela.
