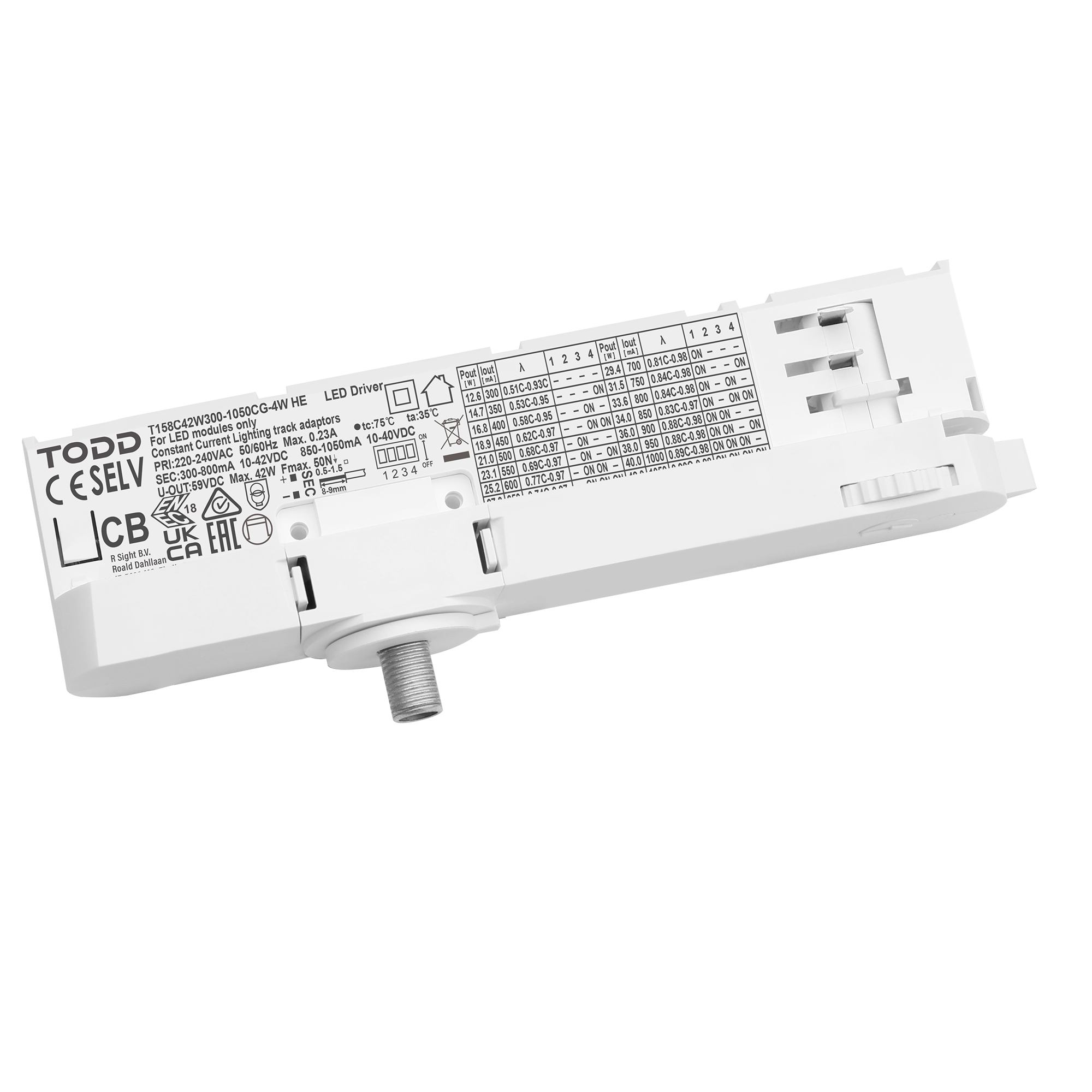

Highly Efficienct LED Driver 42W300-1050

Get Latest Price

The output voltage	10-42V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	42

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: S,H,E

Contact Now>

Product Attributes
Packaging & Delivery
Supply Ability & Additional Information
Product Description

Product Attributes

Model No.: T158C42W300-1050CG-4X HE

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 158x31.1x42.1mm

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Download:

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: S,H,E

Payment Type: T/T

Incoterm: FOB

Product Description

This led light driver is designed for fine lighting scenes and is the energy hub for commercial space and high-end home lighting. Its intelligent current regulation system achieves 300mA to 1050mA precision regulation through physical dip, whether it is the focusing light effect of jewelry showcase or the uniform lighting of office strip lamps, it can find the right brightness balance point.

We are an independent factory that researches and produces LED driver. Here is a brief information about the product. If you would like to learn more about product parameters, you can download the data sheet or contact us.

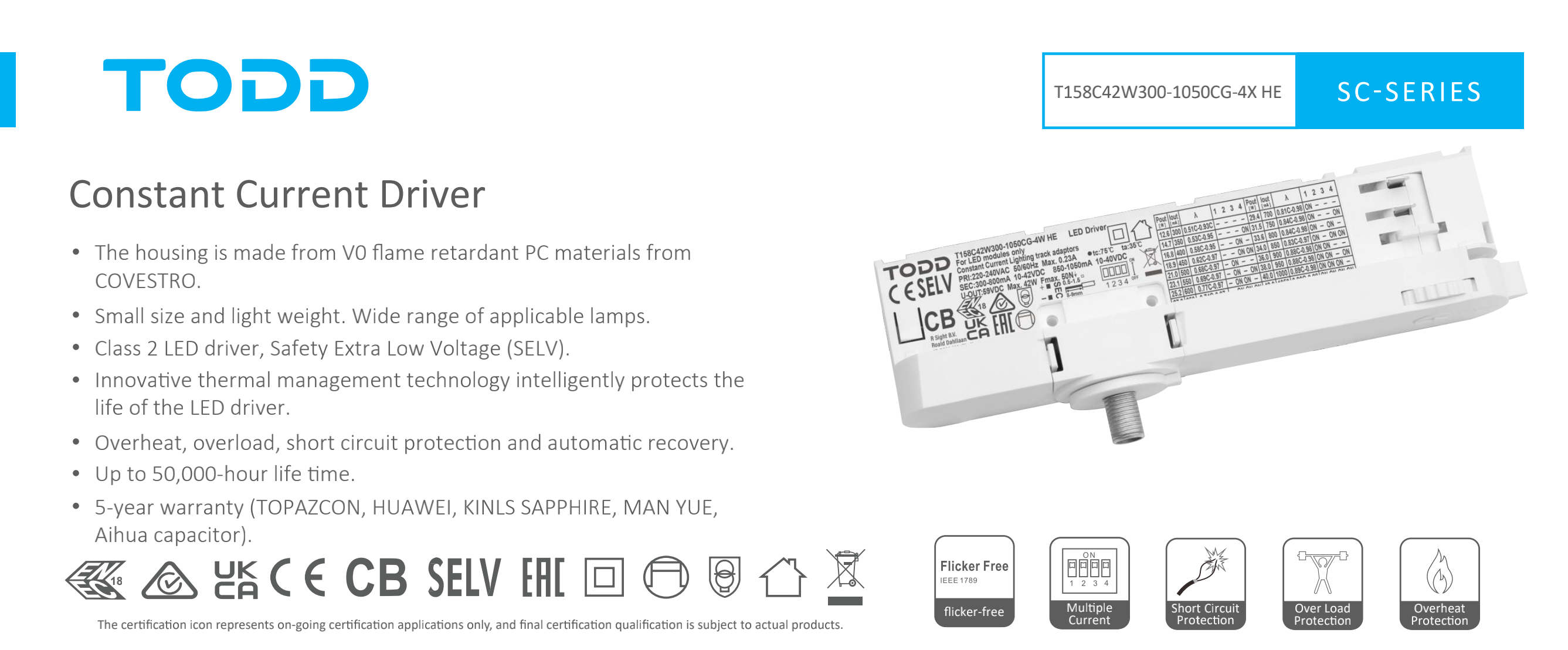

constant current led driver:

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

Output Current adjustable via Dip Switch

300-1050mA

10-42V

up to 91-92% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.98

current ripple(< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

158x31.1x42.1mm

Overload Protection

Short Circuit Protection

SELV

Suitable for following tracks

Serial number	Brand	Track model	Serial number
1	Global	XTS 4&XTSF 4	3P
2	Stucchi	9000XX Series	3P
3	Eutrac	2510x	3P
4	Unipro	T32B	3P
5	Lvela	7501	3P

Remark:

1.The model name is XTS 4 and XTSF 4 tracks, and its brand is Global.

2.The model name used is the 9000XX track,and its brand is Stucchi.The“XX in the model name represents: it represents a different color.

3. The model name is 2510x tracks, and its brand is Eutrac.The“x”in the model name represents: it represents a different color(x=1white;x=2 black;x=3silverx=8 grey).

4. The model name is T32B tracksand its brand is Unipro.

5. The model name is 7501 tracks, and its brand is Ivela.
