Dimmable intrack led driver 42W300-1050

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

The output voltage	10-42V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	42

Get Latest Price



PRODUCT ATTRIBUTES



Overview

Product Attributes

Model No.: T218C42W300-1050CG-4X-CAB

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 218x31.1x42.2mm

Overview

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Download:

Product Description

The CC-CASAMBI constant current led driver system is designed for lighting projects that pursue stability and energy efficiency, and is the core power unit for high-end commercial and home lighting. Its intelligent current regulation technology can flexibly match multi-level needs from key display lighting to ambient lighting effects. Whether it is precise lighting for museum display cabinets or continuous light strips in hotel corridors, it can provide smooth and fluctuation free power support.

The drive unit adopts an industrial grade protective structure, and the shell has passed impact and dust resistance tests, adapting to complex installation environments such as mall ceiling interlayers and outdoor canopies. The internal circuit is equipped with a dynamic energy efficiency optimization module, which can control the power loss at an industry-leading level under typical working conditions. Combined with active heat dissipation design, it ensures that the equipment maintains low-temperature silent operation in intensive use scenarios.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

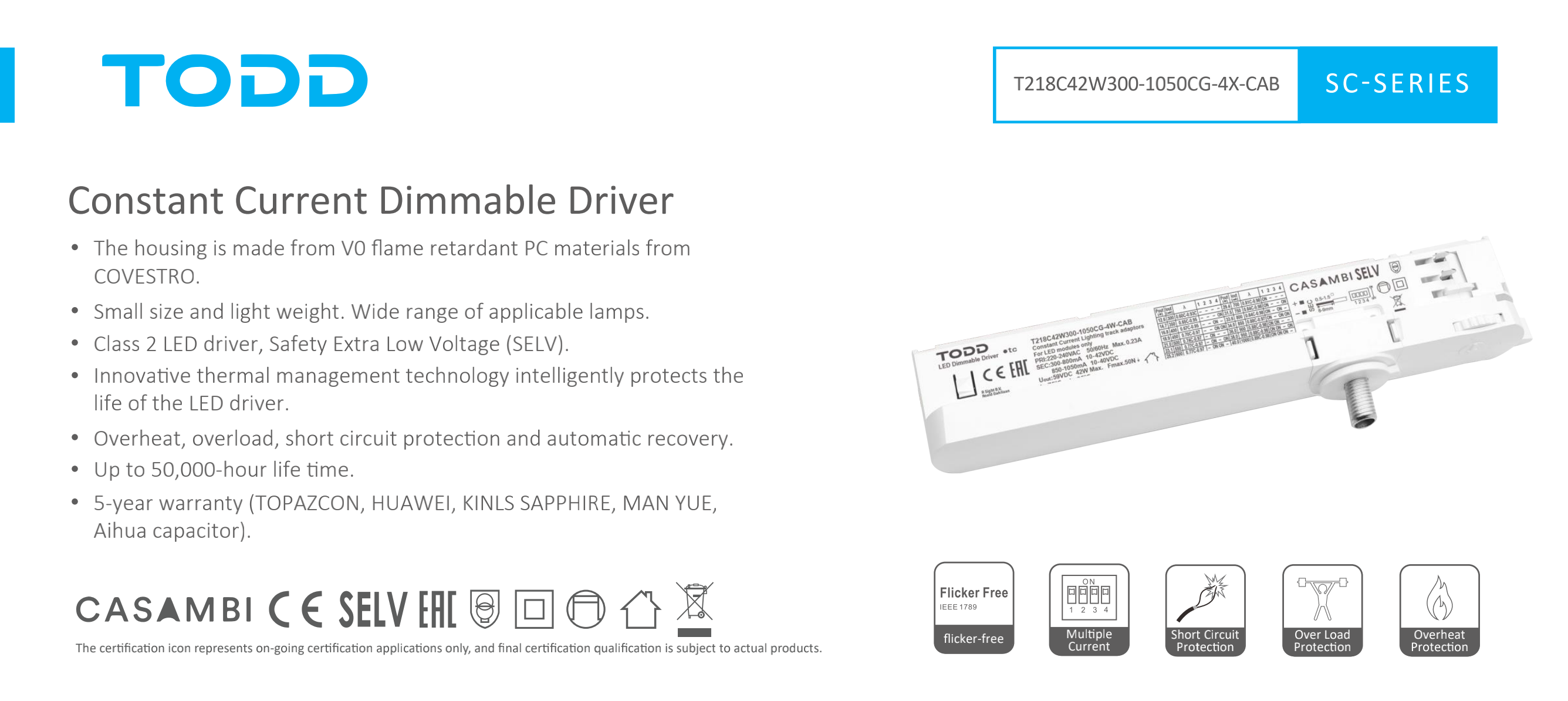

Constant Current LED Driver

Output Current adjustable via Dip Switch

Dimmable：CC-CASAMBI

300-1050mA

10-42V

up to 87-88% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.98

current ripple(< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

218x31.1x42.2mm

Overload Protection

Short Circuit Protection

SELV

Suitable for following tracks

Serial number	Brand	Track model	Serial number
1	Global	XTS 4&XTSF 4	3P
2	Stucchi	9000XX Series	3P
3	Eutrac	2510x	3P
4	Unipro	T32B	3P
5	Lvela	7501	3P

Remark:

1.The model name is XTS 4 and XTSF 4 tracks, and its brand is Global.

2.The model name used is the 9000XX track,and its brand is Stucchi.The“XX in the model name represents: it represents a different color.

3. The model name is 2510x tracks, and its brand is Eutrac.The“x”in the model name represents: it represents a different color(x=1white;x=2 black;x=3silverx=8 grey).

4. The model name is T32B tracksand its brand is Unipro.

5. The model name is 7501 tracks, and its brand is Ivela.
