Class 2 LED Driver 20W 150-500mA

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

The output voltage	20-40V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	20

Get Latest Price



PRODUCT ATTRIBUTES



Overview

Product Attributes

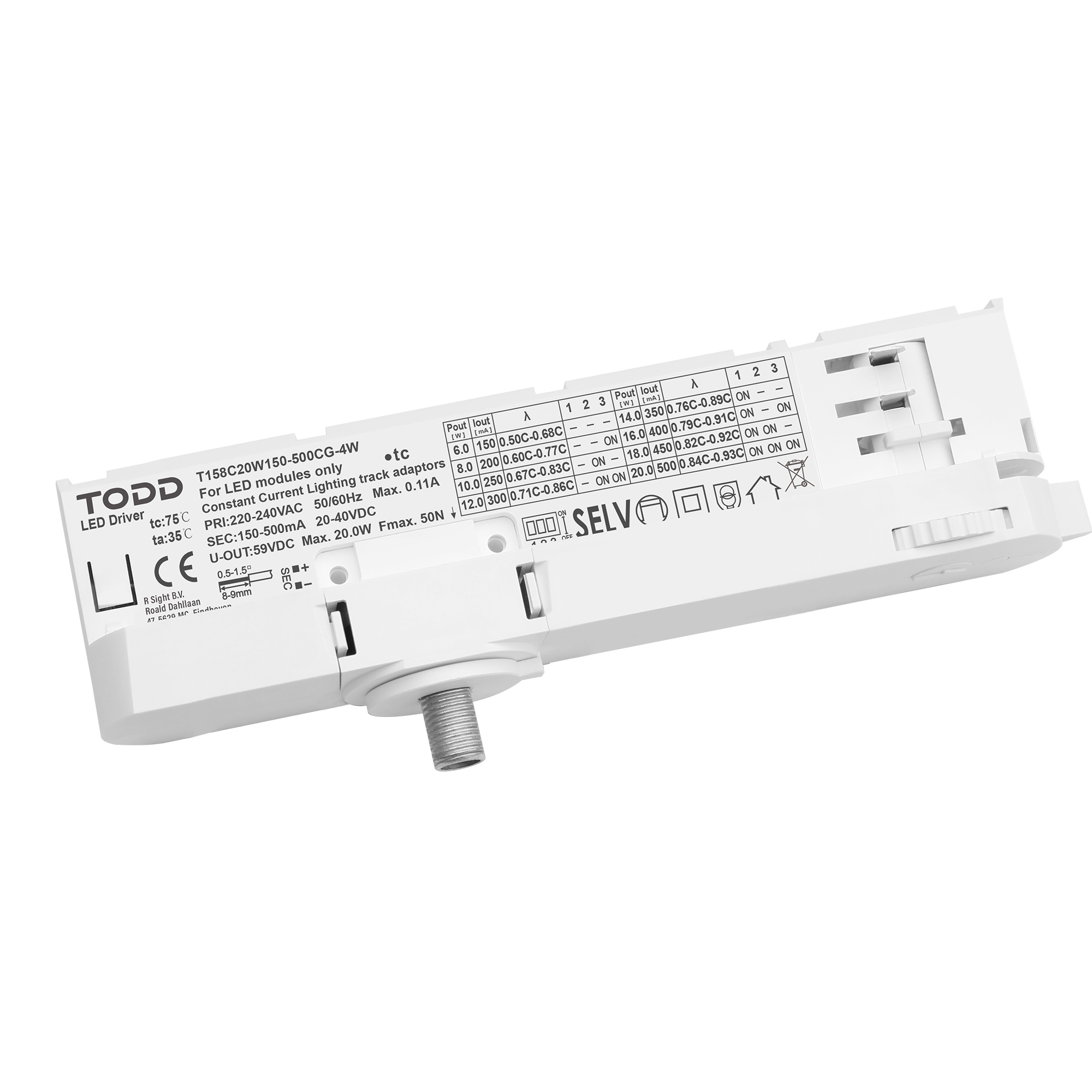

Model No.: T158C20W150-500CG-4X

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 158x31.1x42.1mm

Overview

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Download:

Product Description

When you deploy lighting projects in different cities around the world, this In-track LED Driver built-in smart grid adaptation module automatically recognizes voltage fluctuations of 220-240V, coupled with a high power factor of 0.93. The unique current filtering system controls fluctuations within ± 3%, and even when shooting lights with a mobile phone, there will be no annoying flicker stripes.

The palm sized body can easily hide in the ceiling groove or display cabinet compartment. Behind the five-year warranty commitment is the rigorous testing data simulated for 50000 hours of continuous operation in the laboratory, which is sufficient to support the complete cycle of the coffee shop from opening to brand upgrade. When you leave the office late at night and look up, you see the still stable illuminated sign light box, which is this silent companion continuously guarding the quality of light and shadow.

We are a factory that independently researches and produces LED driver. The following is a brief information about the product. If you want to learn more about the product parameters, you can download the datasheet or contact us.

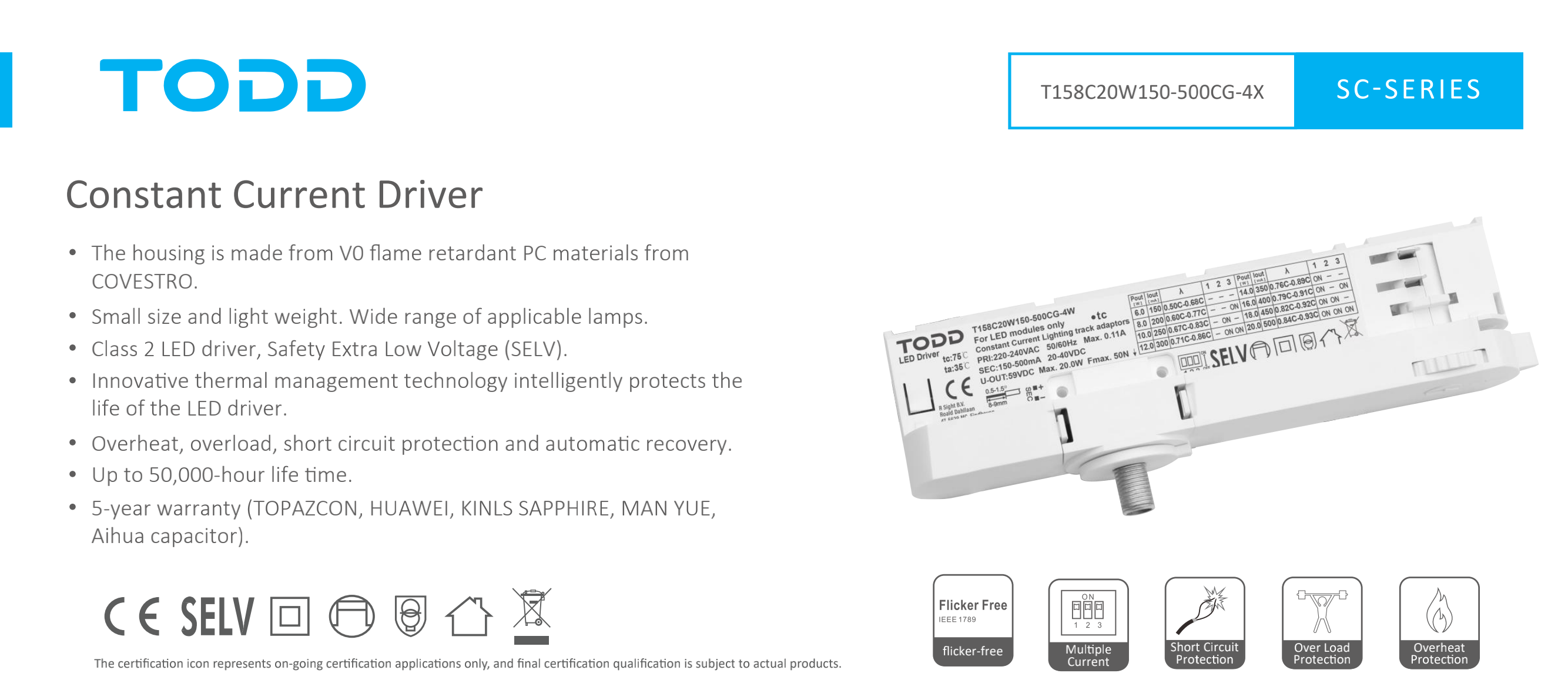

constant current led driver：

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

Output Current adjustable via Dip Switch

150-500mA

20-40V

up to 87-88% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.93

current ripple(< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

158x31.1x42.1mm

Overload Protection

Short Circuit Protection

SELV

Suitable for following tracks

Serial number	Brand	Track model	Serial number
1	Global	XTS 4&XTSF 4	3P
2	Stucchi	9000XX Series	3P
3	Eutrac	2510x	3P
4	Unipro	T32B	3P
5	Lvela	7501	3P

Remark:

1.The model name is XTS 4 and XTSF 4 tracks, and its brand is Global.

2.The model name used is the 9000XX track,and its brand is Stucchi.The“XX in the model name represents: it represents a different color.

3. The model name is 2510x tracks, and its brand is Eutrac.The“x”in the model name represents: it represents a different color(x=1white;x=2 black;x=3silverx=8 grey).

4. The model name is T32B tracksand its brand is Unipro.

5. The model name is 7501 tracks, and its brand is Ivela.
