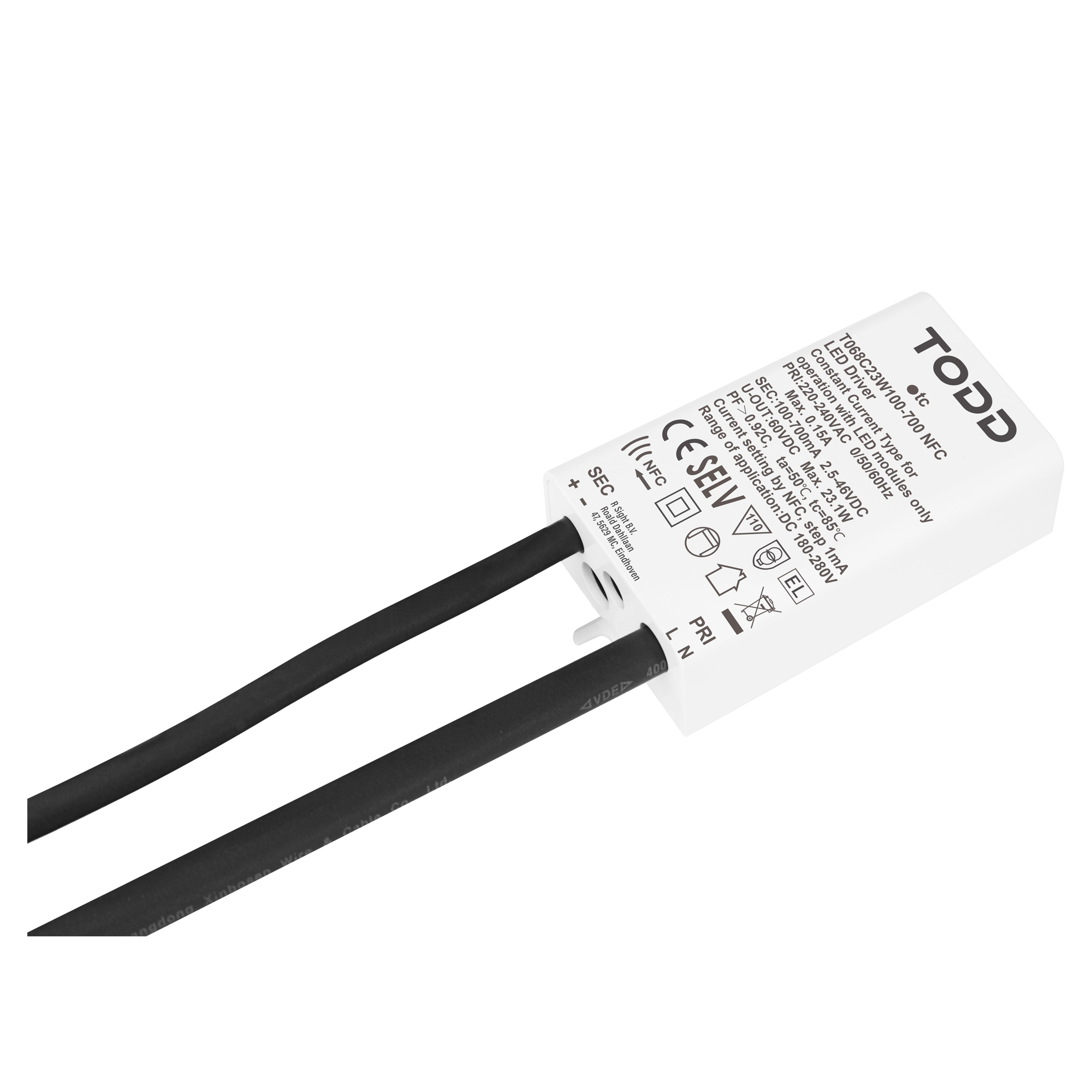

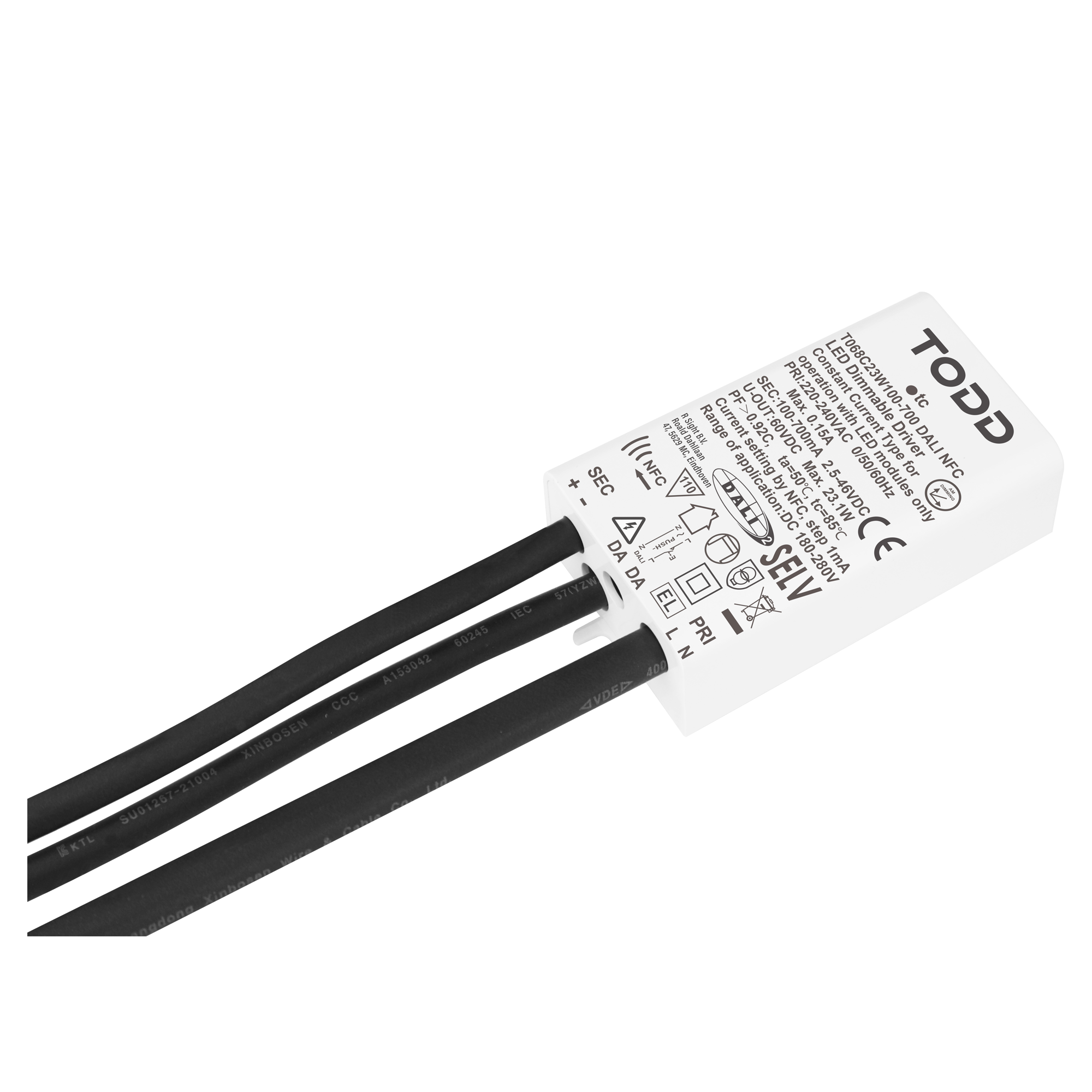

Dimmable LED Driver DALI NFC 23W

Dimmable LED Driver DALI NFC 23W

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.: T068C23W100-700 DALI NFC

    Brand: TODD

    Warranty Period (years): 5-Year

    Place Of Origin: China

    Output Power: 1 - 50w

    Output Type: Single

    Input Voltage: 220v

    Size: 68x45x25mm

    Description
    Product Description
    Designed for lighting manufacturers, system integrators, and project engineers who demand reliability and precision.

    Why Choose This Driver?

    1.Make Installation and Configuration Faster

    With NFC programming, installers can read or adjust output current without opening the housing, saving time during mass production and field installation.

    * 1mA precision current setting
    * APP / software programmable

    2.No complex setup,tap NFC, configure, and install.

    Stable, Flicker-Free Output

    The constant current led driver provides flicker free lighting, ideal for retail, office, and display environments where visual comfort is important.

    * Dimming range: 1%–100%
    * Smooth brightness transition
    * Supports scene memory & synchronization (Push dimming)

    3.Built to Protect Your Lighting System

    Intelligent protection with automatic recovery

    * Over-temperature protection
    * Overload protection
    * Short-circuit protection
    * SELV Class II safety design

    Even if abnormal electrical conditions occur, the driver automatically restores normal operation after the issue is resolved.

    4.Engineered for Longevity

    Lifetime up to 100,000 hours(depending on Tc temperature)
    5-year warranty (F.R. < 10000ppm)
    Flame-retardant V0 housing, compact and lightweight

    This In-track LED Driver is made to last — keeping lighting systems operating reliably for years.

    * Track spot lighting
    * Retail / museum display lighting
    * Office & commercial lighting
    * LED strip projects requiring precise current control

    If your project values light quality, reliability, and installation efficiency, this constant current LED driver is the right solution.


    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

    Constant Current LED Driver

    Output Current adjustable via NFC Switch

    dimmable ：DALI

    100-700mA

    2.5-46V

    up to 88-89% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 0/50/60Hz

    Power Factor ≥0.92

    Current ripple (< 120 Hz) ±3%

    IP Grade IP65

    Insulation Class II

    Independent

    68x45x25mm

    Overload Protection

    Short Circuit Protection

    SELV
    LED driver 100-700 DALI NFC
