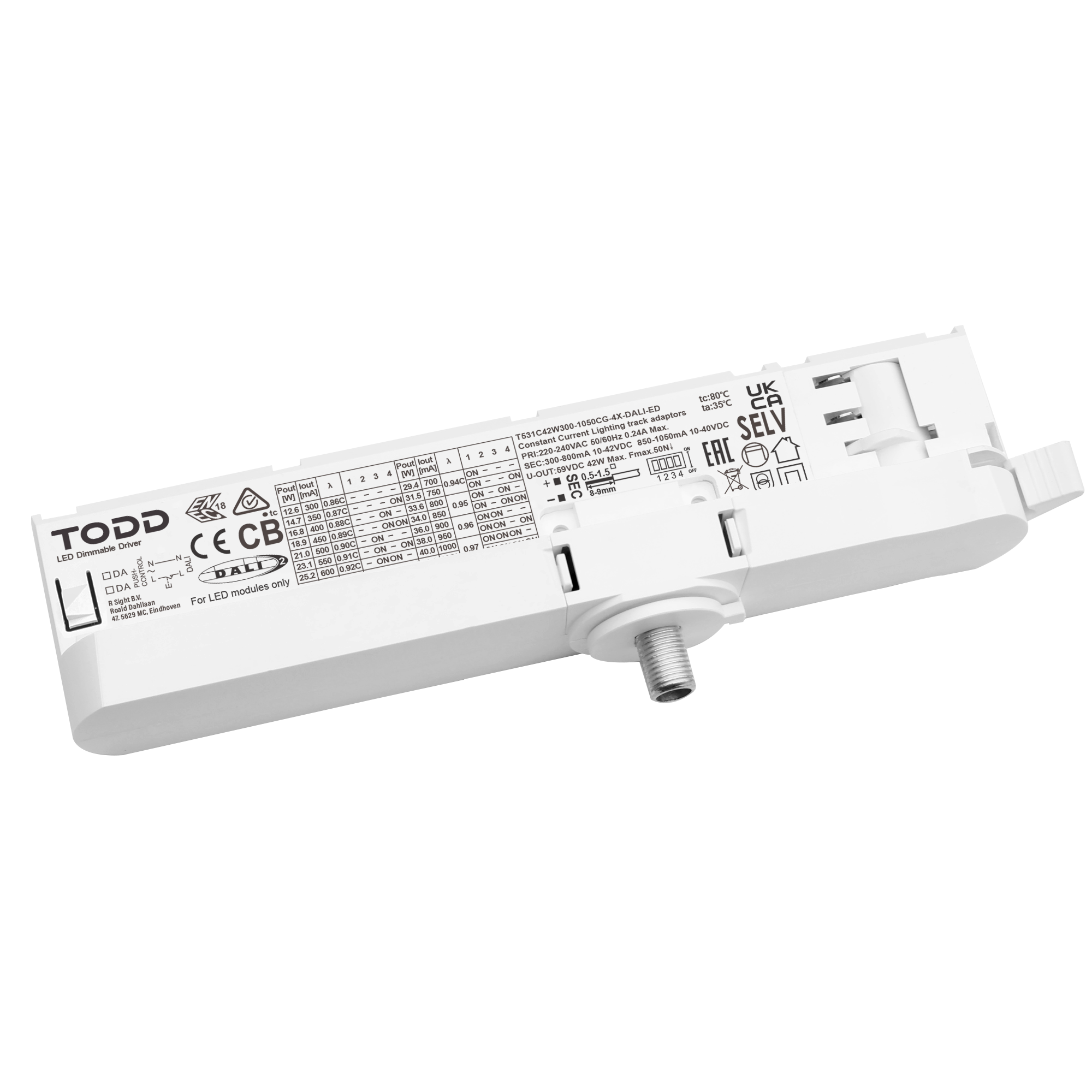

DALI LED Driver 42W ED

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

The output voltage	10-42V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	42

Get Latest Price



PRODUCT ATTRIBUTES



Overview

Product Attributes

Model No.: T531C42W300-1050CG-4X DALI ED

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 178x31.1x46mm

Overview

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Download:

Product Description

This DALI intelligent dimming driver power supply (42W ED type) can be called the "smart butler" of commercial lighting systems. It is like the central nervous system of lighting, not only able to accurately control every light on the track, but also able to "communicate" with the intelligent control system of the building. Whether it is the key lighting of shopping mall windows or the uniform lighting of office areas, the wide current adjustment of 300 to 1050 milliamps allows it to easily handle various lighting combinations from spotlights to linear light strips.

Don't be fooled by its palm sized size, it has plenty of hidden black technology: the built-in DALI protocol chip allows the lighting engineer to remotely adjust the brightness rhythm of the entire floor in front of the computer. It automatically brightens up and wakes up the space in the morning, and gradually darkens in the evening to create a relaxing atmosphere. The unique three-dimensional heat dissipation duct design can maintain "calm" operation even in high-temperature steam or warehouse dust environments in the kitchen, and the service life is extended by more than 30% compared to ordinary drives.

From smart rooms in five-star hotels to high ceiling lighting in industrial plants, the intelligent genes of this driver make lighting no longer just a simple switch, but a wizard of spatial atmosphere. When other drivers are still manually adjusting parameters, it can already be linked with security and air conditioning through the DALI system, truly entering the future of IoT lighting.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

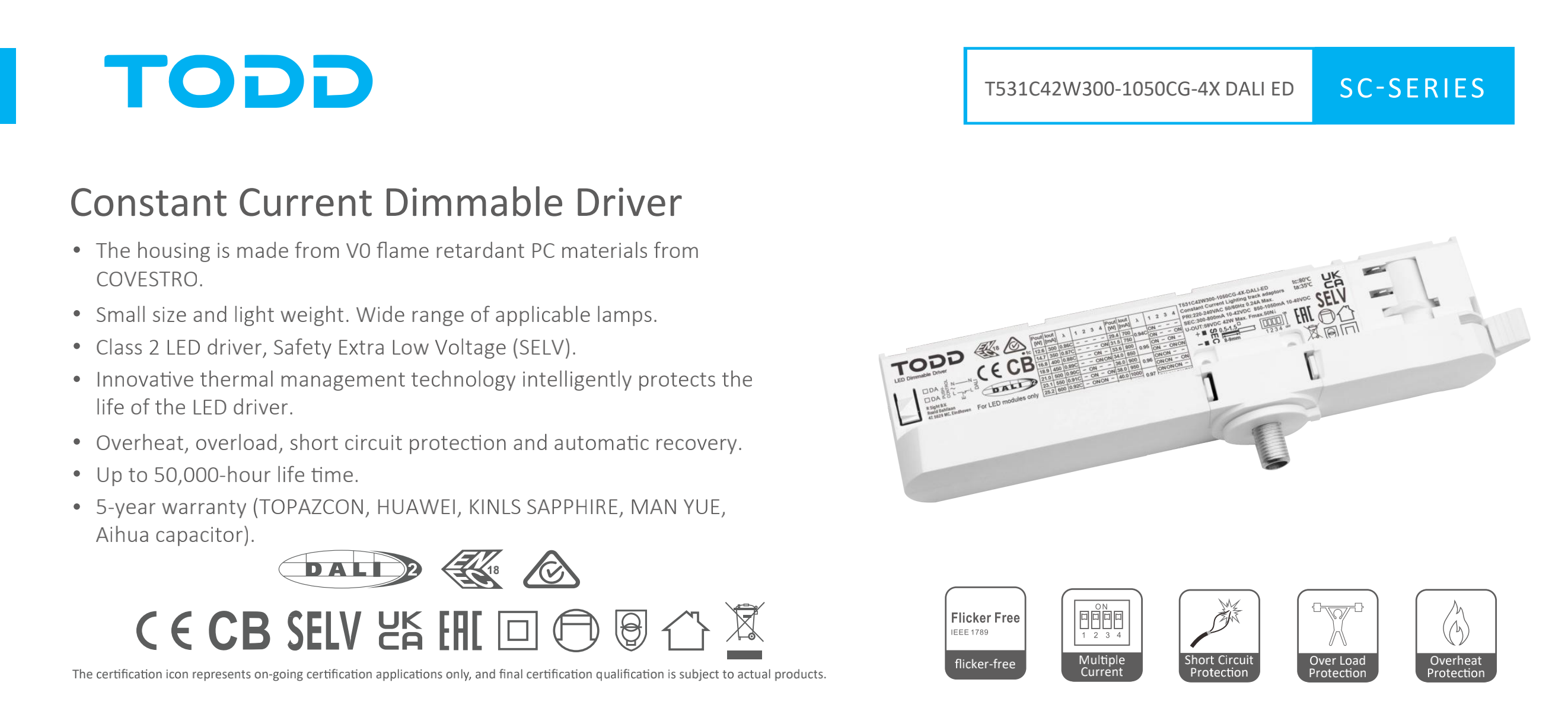

Constant Current LED Driver

Output Current adjustable via Dip Switch

dimmable：DALI

300-1050mA

10-42V

up to 87-88% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.97

current ripple (< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

178x31.1x46mm

Overload Protection

Short Circuit Protection

SELV
