Todd Electric(Guangdong) Co., Ltd
Products> In-track LED Driver> CC Dimmable Driver 42W 300-1050mA

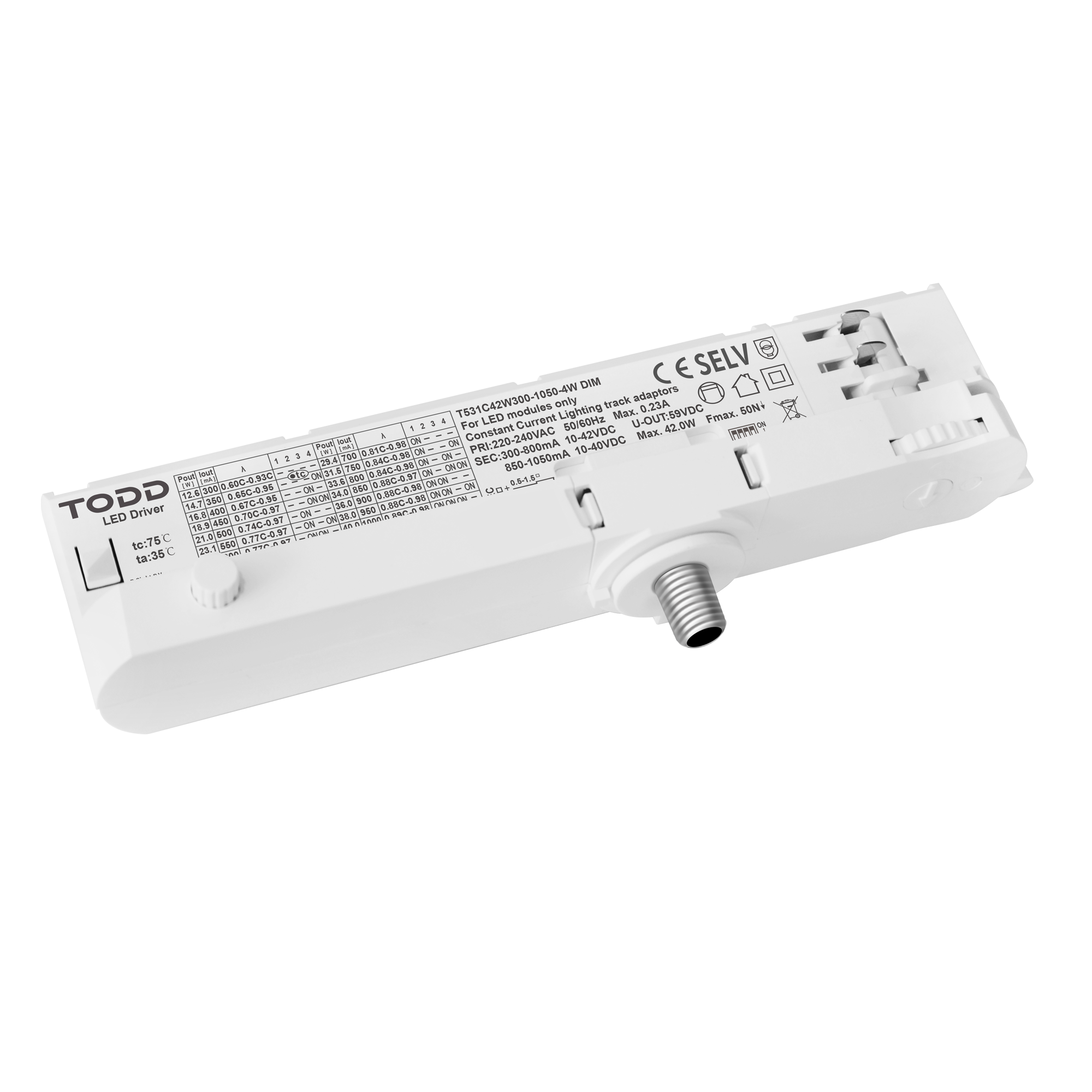

CC Dimmable Driver 42W 300-1050mA

CC Dimmable Driver 42W 300-1050mA

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.T531C42W300-1050-4X DIM

    BrandTODD

    Warranty Period (years)5-Year

    Place Of OriginChina

    Output Power1 - 50w

    Input Voltage220v

    Size178x31.1x42.2mm

    Description
    Product Description
    This track-type LED driver power supply can not only adapt to professional lighting systems, but also meet the needs of home intelligent transformation. Its core advantage is the intelligent current control ability - 300 to 1050 MA wide adjustment range, can accurately match different lamp combinations from decorative lights to the main lighting array, whether it is the focus of the mall display lighting, or the track spot light layout of the living room, you can find the ideal drive solution.

    The total power design of 42 watts is particularly suitable for medium to large lighting scenarios, such as downlight clusters in whole-floor office areas or whole-house lighting systems in villas. The compact, streamlined body takes up only two-thirds of the space of a conventional drive and can be easily inserted even when retrofitting old tracks without compromising the overall aesthetic.


    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

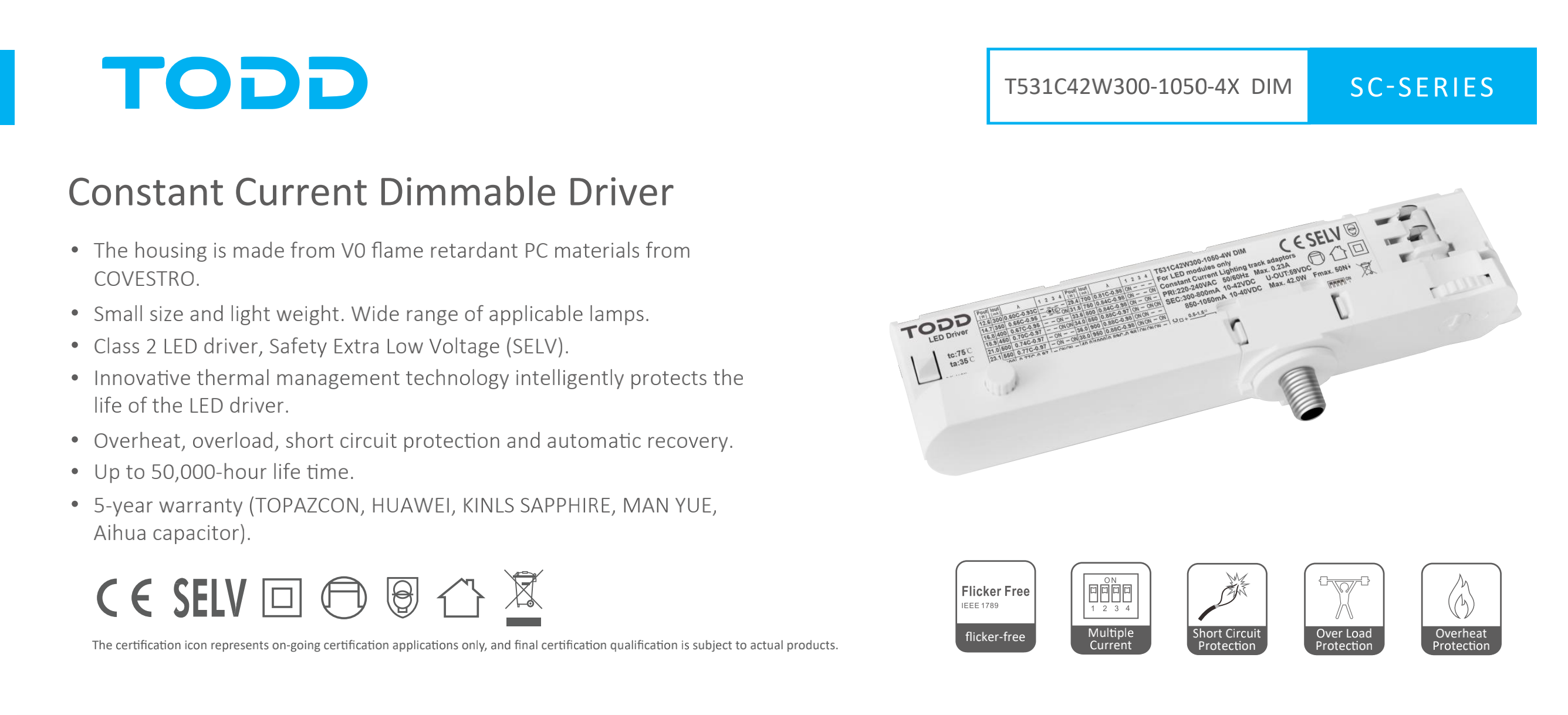

    Constant Current LED Driver

    Output Current adjustable via Dip Switch

    Dimmable10%-100%

    300-1050mA

    10-42V

    up to 88-89% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 50/60Hz

    Power Factor ≥0.98

    current ripple(< 120 Hz) ±3%

    IP Grade IP20

    Insulation Class II

    Independent

    178x31.1x42.2mm

    Overload Protection

    Short Circuit Protection

    SELV

    led driver T531C42W300-1050-4X DIM
