Home> Products> In-track LED Driver> Intrack LED Driver 42W DIP 3CCT

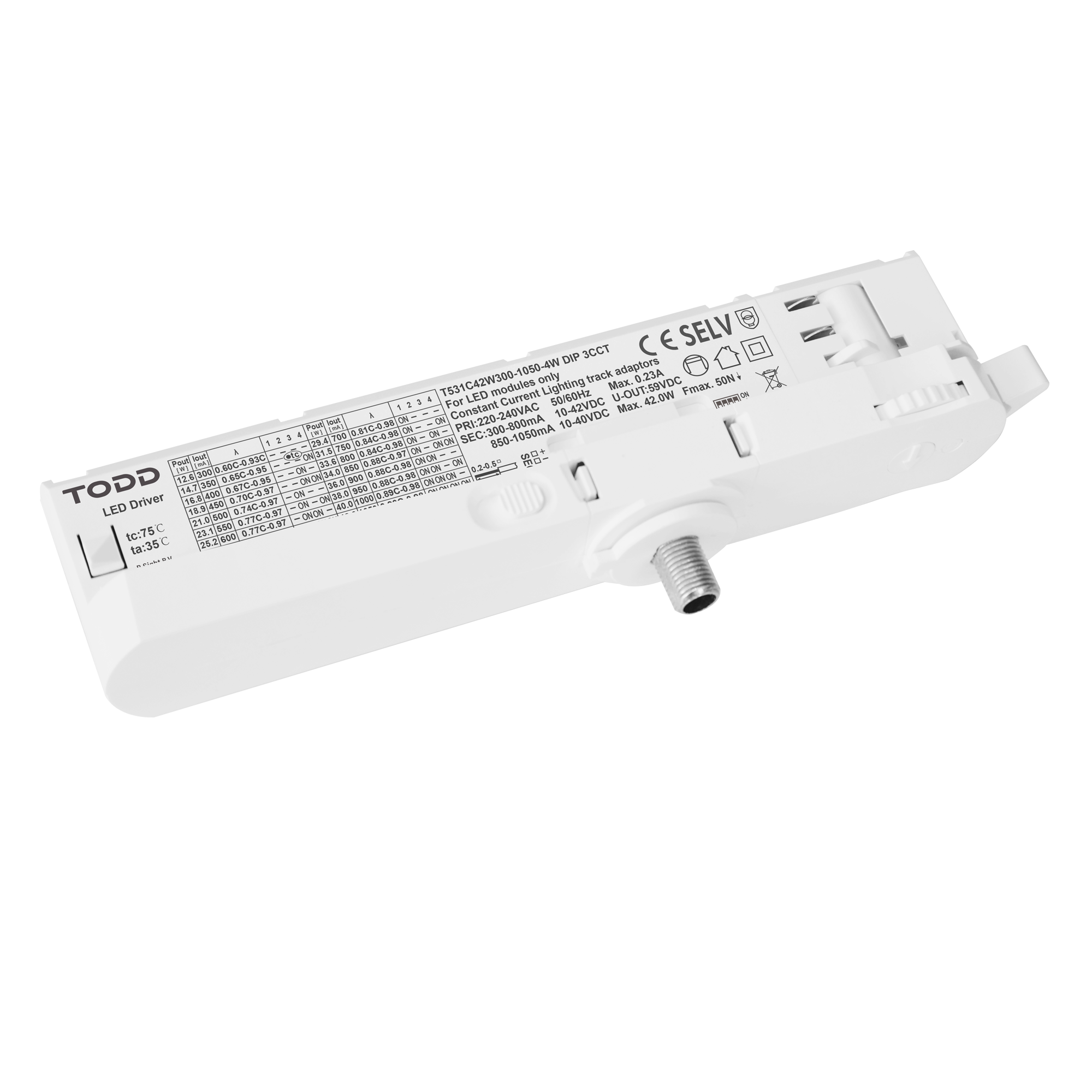

Intrack LED Driver 42W DIP 3CCT

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

Get Latest Price

The output voltage	10-42V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	42
Contact Now





Product Attributes Product Description Packaging & Delivery

Product Attributes

Model No.: T531C42W300-1050-4X DIP 3CCT

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 178x31.1x42.2mm

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Product Description

The Intrack 42W three-color temperature adjustable LED driver is called the "all-round manager" of professional lighting design. Designed for high-end lighting scenes, this drive device can control the warm and warm light of the coffee shop, but also accurately output the cold white light effect required by the office area, and even automatically switch the color temperature mode according to the needs of the hotel corridor day and night.

The heart of it is hidden in the physical dip switch on the side of the body - with a simple finger flick, you can switch between three preset color temperatures (2700K/4000K/6500K), like changing the light filter. What's more, the current parameters can also be fine-tuned in the same way, from the strong current mode of the focus lighting to the soft light configuration of the ambient light belt, without the need for professional tools to set the parameters.

Built with a V0 flame retardant PC housing and SELV safety design, it integrates overheat, overload, and short-circuit protections with automatic recovery to ensure long-term stable operation. With up to 89% efficiency, ≤0.5W standby power consumption, and a service life of 50,000 hours or more, this adjustable LED driver delivers exceptional reliability for retail lighting, hotel environments, and display spaces.

Choose this LED driver for flexible installation, higher energy efficiency, and professional light control.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

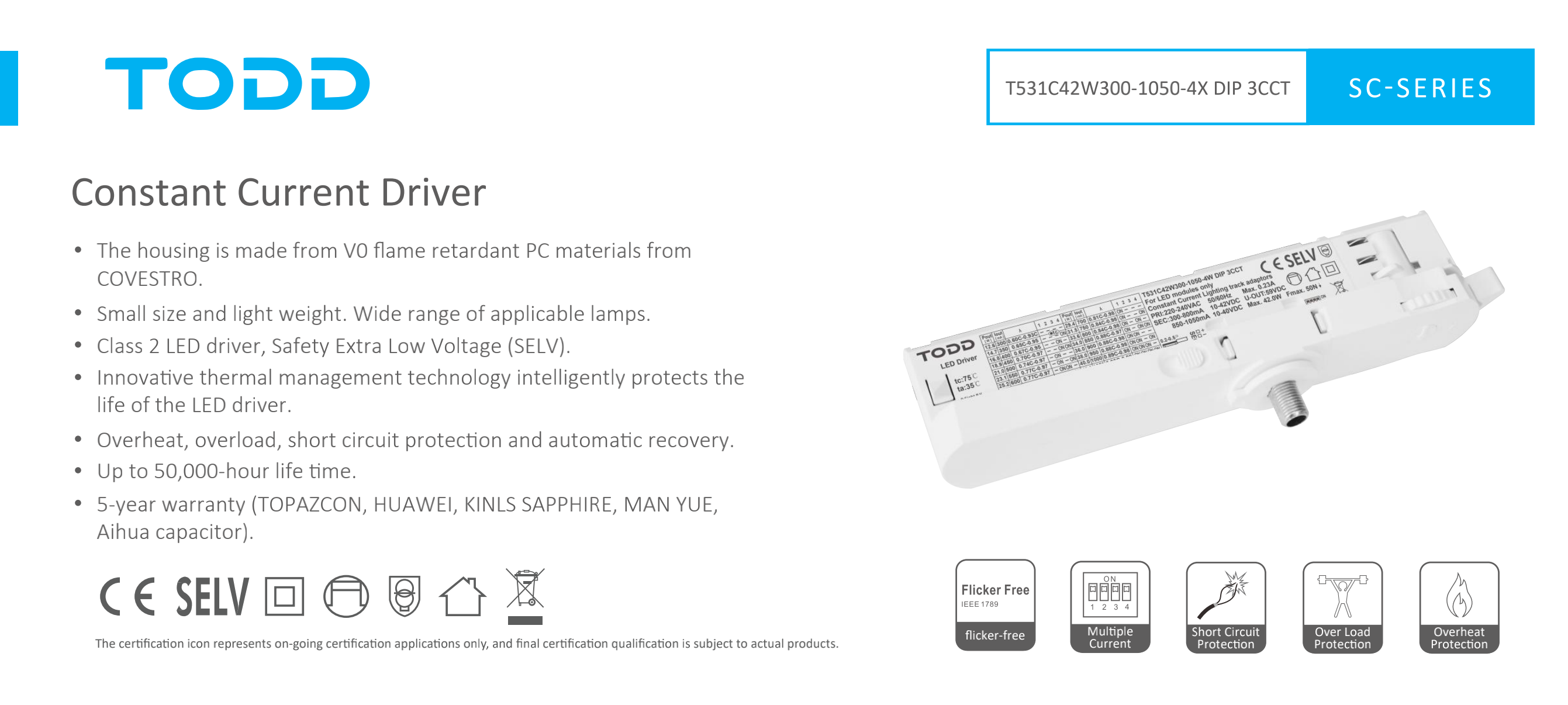

Constant Current LED Driver

Output Current adjustable via Dip Switch

300-1050mA

10-42V

up to 88-89% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 50/60Hz

Power Factor ≥0.98

current ripple(< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Independent

178x31.1x42.2mm

Overload Protection

Short Circuit Protection

SELV

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box

Download

T531C42W300-1050-4X DIP 3CCT datasheet
