Intrack drivers 42W 300-1050mA

Intrack drivers 42W 300-1050mA

Get Latest Price
    The output voltage
    Input voltage (V)
    Total lamp power (Watts)
    Contact Now
    Share:

    Model No.T513C42W300-1050CG-4X-ED

    BrandTODD

    Warranty Period (years)5-Year

    Place Of OriginChina

    Output Power1 - 50w

    Input Voltage220v

    Size212.7x31.9x36.4mm

    Description
    Product Description
    This track embedded LED driver device is the intelligent adjustment center of the lighting system. Its core advantage lies in the ability to accurately regulate the current output within the range of 300 to 1050mA, whether it is coffee shop light strips that require a soft atmosphere or exhibition hall spotlights that emphasize visual impact, they can find the perfect brightness balance point. Engineers have implanted a dynamic voltage stabilization system into the palm sized body, which can continuously output stable 42W power even when driving different types of track lights simultaneously.


    PRODUCT DESCRIPTION

    TECHNICAL SPECIFICATIONS

    HOUSING CHARACTERISTICS

    FUNCTIONS

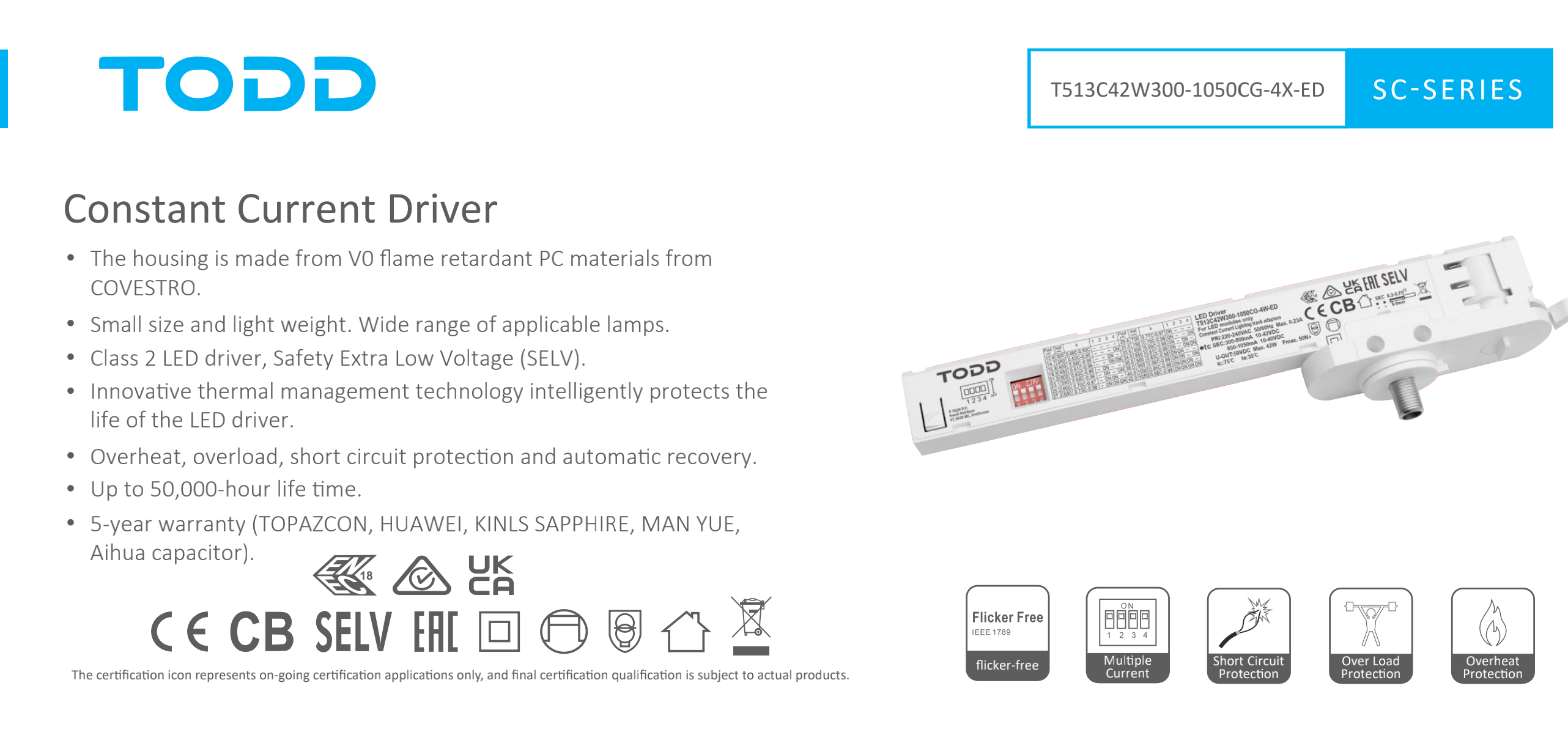

    Constant Current LED Driver

    Output Current adjustable via Dip Switch

    300-1050mA

    10-42V

    up to 88-89% Efficiency

    Life Time 50.000h

    5years warranty

    Input Voltage 220-240VAC

    Frequency 50/60Hz

    Power Factor ≥0.97

    current ripple(< 120 Hz) ±3%

    IP Grade IP20

    Insulation Class II

    Independent

    212.7x31.9x36.4mm

    Overload Protection

    Short Circuit Protection

    SELV

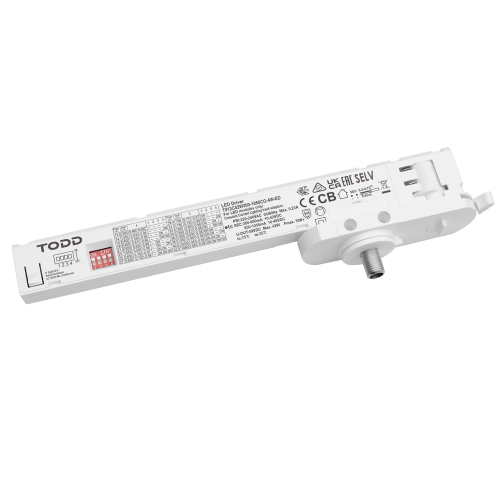

    led driver T513C42W300-1050CG-4X-ED
    Suitable for following tracks:
    Serial number Brand Track model Serial number
    1 Global XTS 4&XTSF 4 3P
    2 Stucchi 9000XX Series 3P
    3 Eutrac 2510x 3P
    4 Unipro T32B 3P
    5 Lvela 7501 3P
    6 ERCO ZUMTOBEL 3P
