Tiny LED Driver of 15w

Payment Type: T/T
Incoterm: FOB
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Air
Port: SHENZHEN,GUANGZHOU

Get Latest Price

The output voltage	2.5-46V
Input voltage (V)	AC 220-240V
Total lamp power (Watts)	15
Contact Now





Product Attributes Product Description Packaging & Delivery

Product Attributes

Model No.: T103C15W100-700

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Output Power: 1 - 50w

Input Voltage: 220v

Size: 103.4x30x21mm

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB

Product Description

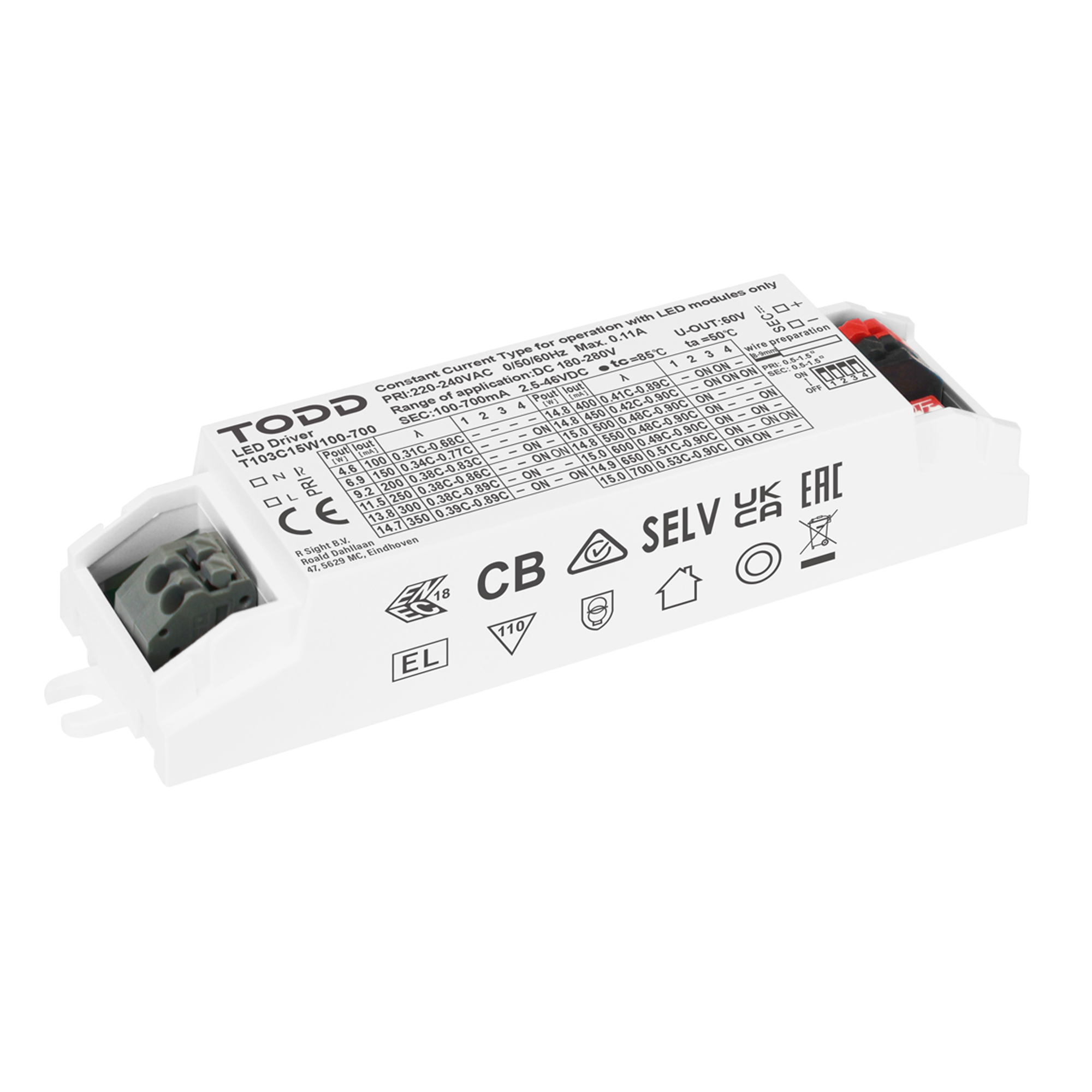

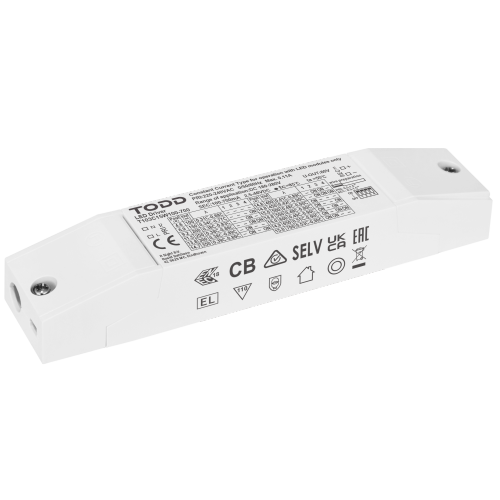

The T103C15W100-700 is a Compact LED Driver engineered for lighting manufacturers who need a reliable and space efficient power solution. Designed as a small led driver, it delivers stable constant current output from 100 to700mA, with a maximum power of 15W suited for LED module applications. The driver uses V0 flame retardant PC housing from COVESTRO, offering light weight, compact structure, and installation flexibility for different fixture designs.

As a constant current led driver, it supports a wide output voltage range of 2.5 to 46V DC depending on the selected current level, with efficiency up to 87% and power factor ≥0.90 @230VAC full load. The design includes integrated protection,overheat, overload, short circuit, and no load, all featuring automatic recovery to ensure driver safety and reliability during operation.

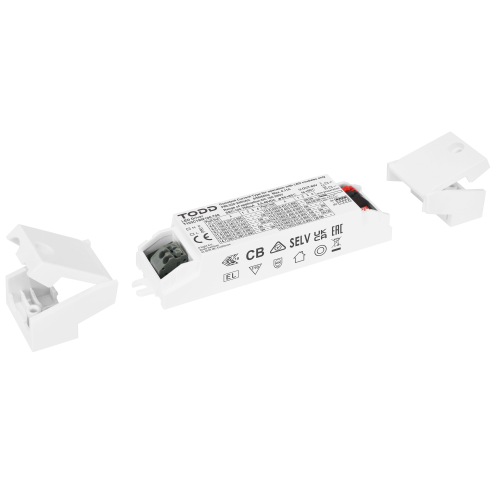

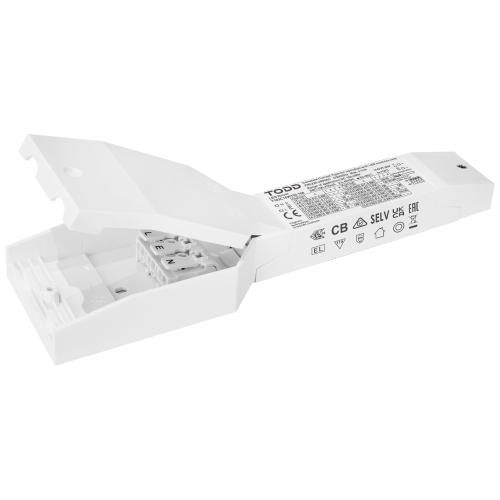

The driver adopts a SELV Class II structure and is suitable for both built in or independent installation using push in terminals (0.5-1.5 mm² wiring). With compact dimensions of 103.4×30×21 mm, it fits easily into narrow luminaires and fixtures requiring a compact LED driver footprint. Designed for long term use, the T103C15W100-700 achieves a lifetime of 100,000 hours at Tc 75°C, supported by a 5 year warranty using branded components including TOPAZCON, Huawei, Kinls Sapphire, Man Yue, and Aihua capacitors.

With ≤0.5W no load power consumption, low ripple (SVM ≤0.4, PstLM ≤1), THD ≤10% at full load, and CE/ENEC/SAA/UKCA certification status, this small LED driver is designed for manufacturers requiring stable LED power performance with compact installation flexibility.

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

HOUSING CHARACTERISTICS

FUNCTIONS

Constant Current LED Driver

Output Current adjustable via Dip Switch

100-700mA

2.5-46V

up to 86-87% Efficiency

Life Time 50.000h

5years warranty

Input Voltage 220-240VAC

Frequency 0/50/60Hz

Power Factor ≥0.90

current ripple (< 120 Hz) ±3%

IP Grade IP20

Insulation Class II

Built-in/Independent

103.4x30x21mm

Overload Protection

Short Circuit Protection

SELV

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box

Download

T103C15W100-700 datasheet
