Small dimmable led driver

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Land,Air
Port: SHENZHEN,GUANGZHOU

Get Latest Price

Input voltage (V)	AC 220V( ± 10%)
Total lamp power (Watts)	44
Contact Now





Product Attributes Product Description Packaging & Delivery

Product Attributes

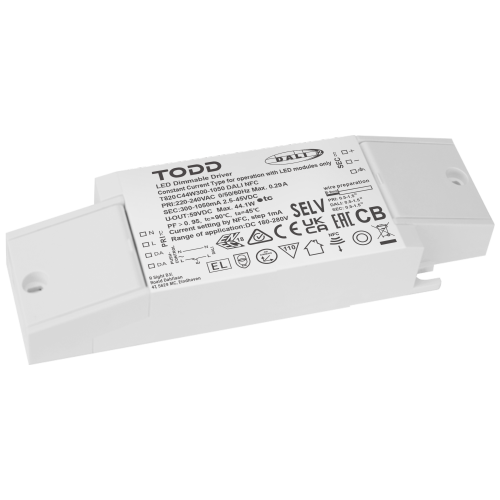

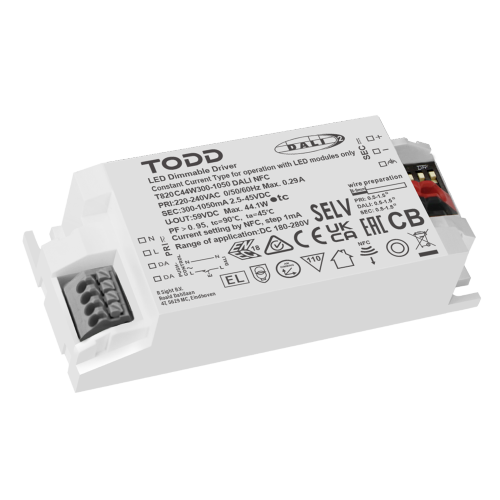

Model No.: T820C44W300-1050 DALI NFC

Brand: TODD

Warranty Period (years): 5-Year

Place Of Origin: China

Size: 97x43x22.8mm

Supply Ability & Additional Information

Packaging: Paper Partions linerboard /Plastic paper,innerbox and outer box

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 300000pcs/month

Certificate: ISO9000 ISO14000

HS Code: 8504401400

Port: SHENZHEN,GUANGZHOU

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Product Description

The T820C44W300-1050 DALI NFC is a constant current dali dimmable driver created for professional lighting systems that require precise control and streamlined configuration. Output current can be set freely from 300–1050mA, adjustable in 1mA steps through NFC programming using software, a PC programmer, or mobile phone. As a dimmable led driver, it supports DALI-2 amplitude dimming (1–100%), selectable linear or logarithmic dimming curves, and secondary PUSH-dim operation with stepless brightness adjustment and memory function.

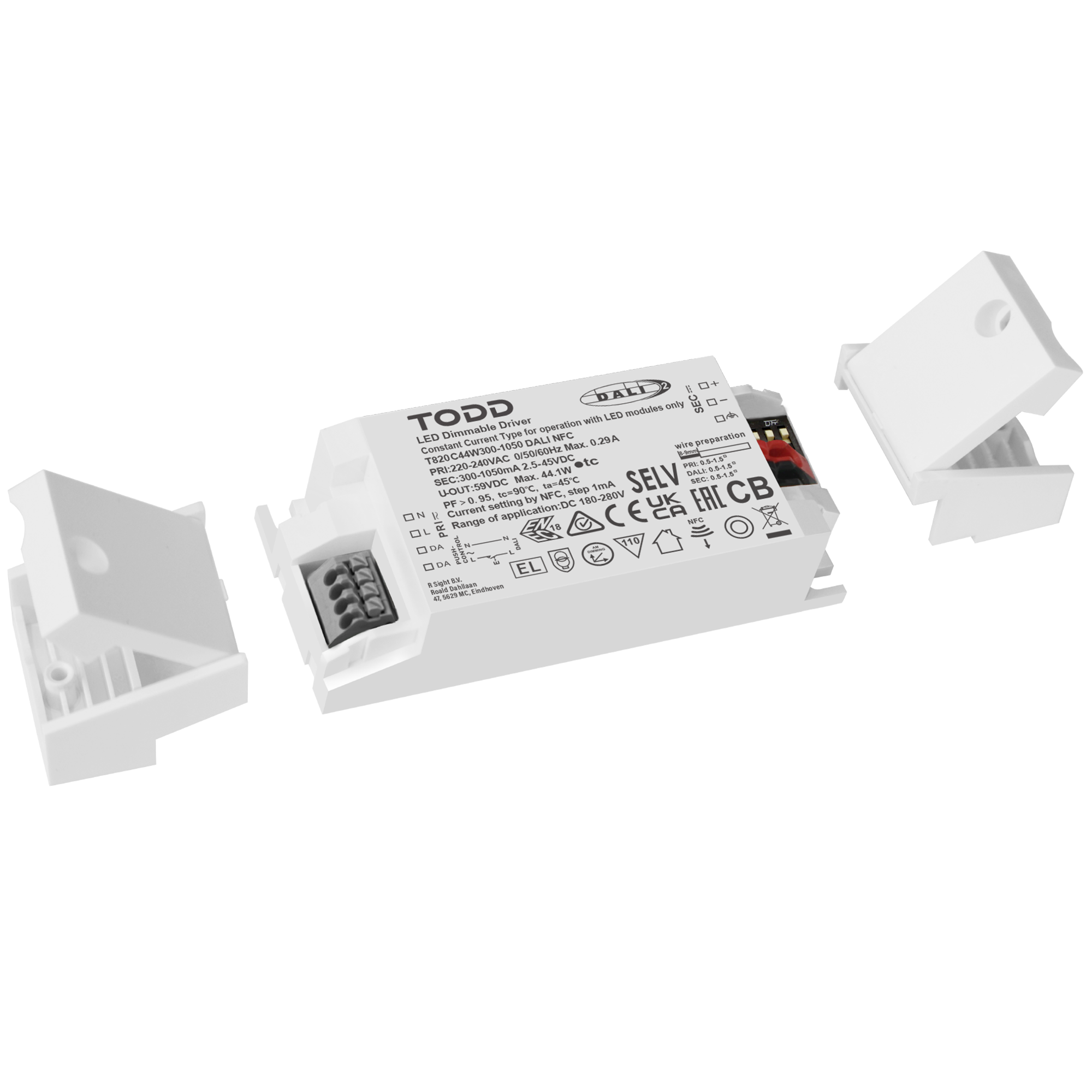

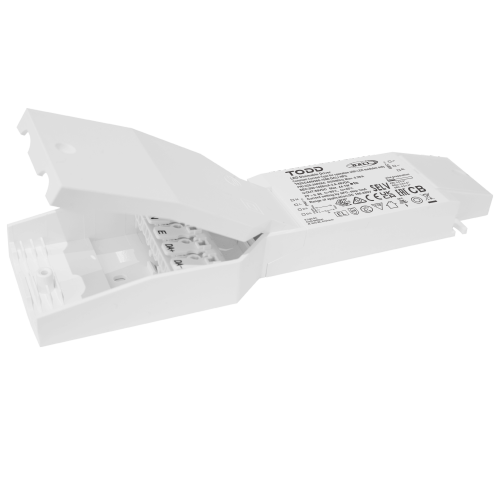

Engineered with V0 flame-retardant PC housing from COVESTRO, compact dimensions of 97×43×22.8mm, and push in terminals, this Compact LED Driver is suitable for both built in and independent installation in a wide range of luminaires. The SELV Class II design ensures safety, while integrated thermal management prevents overheating and protects driver lifespan.

To support reliable operation in demanding environments, the driver includes overheat, overload, short circuit, and no-load protection, all with automatic recovery. Efficiency reaches ≥88%, PF ≥0.95, low ripple (SVM ≤0.4, PstLM ≤1), and the standby power consumption remains ≤0.45W when dimmed off via DALI. It also supports long wiring distances up to 300m for DALI dimming and 20m for PUSH dimming.

Built for durability, the driver delivers a lifetime of 100,000 hours at Tc 80°C, backed by a 5-year warranty using premium capacitors from TOPAZCON, Huawei, Kinls Sapphire, Man Yue, and Aihua. The driver can also reduce residual LED glow in standby mode when earthed, improving EMC stability and minimizing interference.

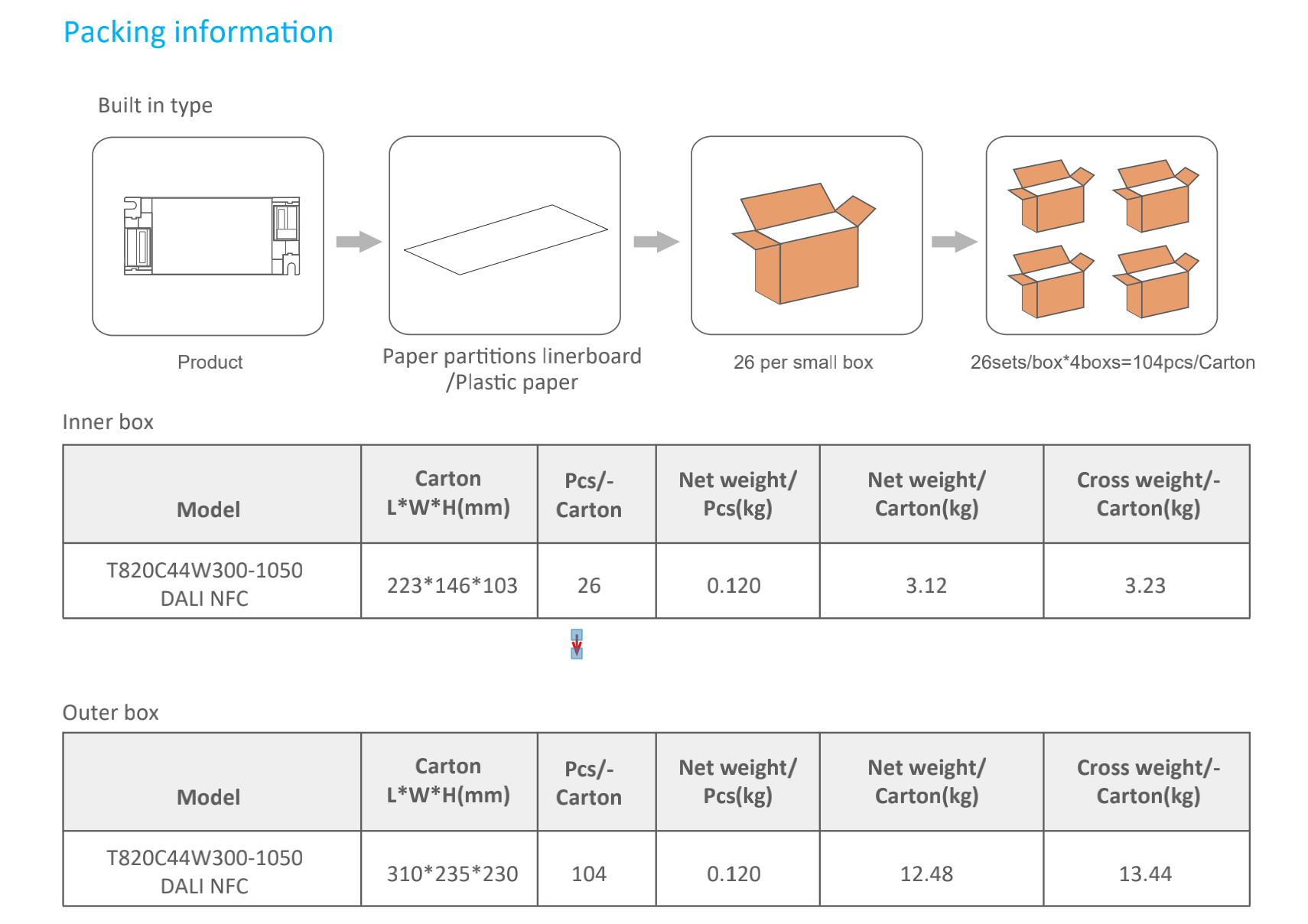

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Paper Partions linerboard /Plastic paper,innerbox and outer box
Picture Example:

Download

T820C44W300-1050 DALI NFC datasheet
